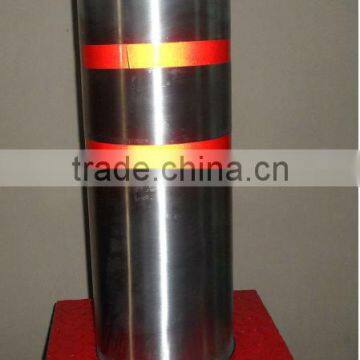

intelligent Steel Bollard

Road Safety Euipments Automatic Hydraulic Bollard System for Pedestrian Walkways AC380V

Specifications:

1) Motor power supply:  AC380V 50/60Hz

2) Control power supply:  AC220V 50/60Hz

3) Rising time:  3~4 second

4) Falling time:  2~3 second

5) Inner tube diameter:  168/219/273mm (D)

6) Rising height:  400-1000mm (H)

7) Rising power:  ≥400Kg

8) System working temperature:  -30°C~ +70°C

9) Controller:  remote control / keyboard

Features  :

Different  thickness of steel is available .

Different grade of reflective film is available : High-Intensity Reflective Film  ,  engineering grade sheet, supper grade sheet .

Different standard color is available

Customized design and size .

Description:

The automatic Bollard is an electro-hydraulic-mechanically operated retractable bollard system.

The system can be quickly and easily operated. It is suitable for both security and access control applications.

The system is designed to bring desired environmental and aesthetic enhancements to perimeter security,   securing   perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots,  government buildings,  sports stadiums,  amusement parks, airports, shopping centers,  hospitals, and apartment complexes.

Applications:

It used for road entrance, hotel, garden, gym etc.

Competitive Advantage:

1) Steady and safe due to the Omron plc control system

2) Speedy and durable due to the use of hydraulic pressure

3) Lower down the bollards by handle valve in case of power failure or fault of automatic system

4) Raise up the bollards by handle pump in case of power failure or fault of automatic system

5) Galvanization is durable and stainless

6) Optimization of frame structure, high anti-impact capability, high loading capability

7) Protecting key avoids mis-operation
