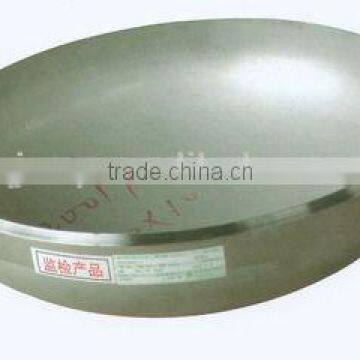

All Sizes of Ellipsoidal Heads on Hot Sale
US$ 20 - 100
/ Piece
50 Pieces(Min. Order)
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Material | Carbon Steel | Technics | Forged | |
| Type | Cap | Place of Origin | Shandong, China | |
| Model Number | Luqiang | Brand Name | LQR | |
| Connection | Welding | Shape | Other | |
| Head Code | Other |
Product Description
Specifications
1. Ellipsoidal head is used to seal the storage tanks to make it vacuum.2.It is made of carbon steel or stainless steel.
Ellipsoidal Head ,dish head:
1.We own Asian unique production line which can make diameter of 12m heads and can supply OEM service .Besides we manufacture A3 head with high quality and competitive prices.
2.Standard:ISO9001:2008;GB/T25198-2010
3.Testing : non-destructive(UT,RT,MT,PT)
carbon sulphur analysis instrument
non-contact type temperature measuring apparatus
WE-60type omnipotent testing machine
examine the thickness appearance
4.Forming method:cold pressing,cold spinning,hot formed,punching
5.License:Manufacture License of Special Equipment People's Republic of China(A3 Head)
6.Application:Our different material and specification heads can be used in many fileds,such as petroleum,chemical industry,boiler,pressure vessels,railway transportation,metal structure,water supply facilities and aerospace engineering,etc.
7.Head's gradient as follows:
DN | Straight edge | gradient | Tolerance of total depth(height) |
| DN≤2000mm | h=25mm | outer:1.5mm inner:1.0mm | (-0.2~+0.6)%DN |
| DN≥2000mm | h=40mm | outer:2.5mm inner:1.5mm | (-0.2~+0.6)%DN |
| others | outer:6%h&≤5 inner:4%h&≤3 | (-0.2~+0.6)%DN |
8.Tolerance of groove angle and groove dimension ,groove surface roughness as follows:
| Items | Tolerance |
| groove angle | ±2.5° |
| groove dimension | ±1mm |
| groove surface roughness | no cracks,delamination,inclusions and other defects |
