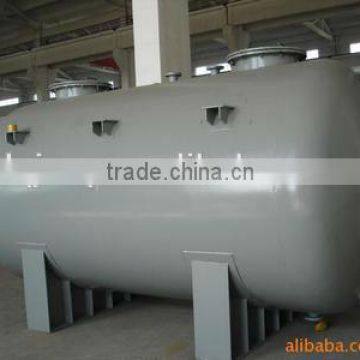

HIgh quality oil drain tank hot sale with global service
- 10 Set / Sets per Month
- QINGDAO TIANJIN RONGKOU
- T/T Credit Card
You May Like
-
Carbon / stainles steel measuring tank with the most favorable price
-
Carbon tank hot water tank
-
shell and tube heat exchanger
-
Air compressor storage tank with high quality
-
Air compressor storage tank/air tank/gas storage tank with high quality
-
20 feet container skid-mounted mobile filling station made by luqiang
Product Details
| Condition | New | Capacity | 100L-100000L | |
| Place of Origin | Shandong, China | Brand Name | LUQIANG | |
| Model Number | LQRQ-10000L | Dimension(L*W*H) | wo can design every size for your requirements | |
| Weight | 1000kg-10000kg | Certification | Certification: ISO9001-2008 | |
| Warranty | one year repair in free and longlife paid warranty | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dear friend, we are manufacturer of oil tank,mobile gas tation and pressure vessel,so we can mannufacture any type and size product for your requirements.
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Technical specification | parameters | Subject | parameters |
| |||
tank | Item Number | CLG2400-50 LPG tanker | Liquid Indictor | Model | UHZ-518C14 |
| |
Overall dimensions(mm) | 11657×2428×3028 | Version | Magnetic |
| |||
Net weight(Kg) | 10760 | Norminal pressure | 2.5Mpa |
| |||
Vessel type | III | Scope of testing | 50-2300mm |
| |||
Designing pressure | 1.77Mpa | Precision | 2.5 |
| |||
Working pressure | 1.61Mpa | Safety Valve | Model | A42F-2.5-80 |
| ||
Designing temperature | -19~50 | Version | Built-in |
| |||
Filling Medium | Propane | Norminal pressure | 2.5 Mpa |
| |||
Corrosion margin | 1.0mm | Nominal diameter | DN80 |
| |||
Volume | 50m3 | Openning pressure | 1.68-1.76 Mpa |
| |||
Heat treatment | bulk | Re-seating pressure | 80% of openning pressure |
| |||
Filling factor | 420kg/m3 | Handling System | Norminal Diameter | Feed pip | DN80 | ||
Material | 16MnR | Drain pip | DN80 | ||||
Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 | ||||
Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN80 | ||||
Cylinder thickness | 13.56mm | Vent nozzle port | DN80 | ||||
Head thickness | 13.53mm | stand | GB150-1998 steel pressure vessels |
| |||
Service time | 10 years | Safety regulation of pressure vessels | |||||
Our advantages:
1.We pased ISO9001:2008 &TUV certificates, obtained Special Equipment design license and Special Equipment manufacture license certificates,which are the highest level (A1 level)
licenses of pressure vessels design and manufacture in China.
2.Automatic submerged arc welding
3.All our products pass strict quality inspection, including X-ray radiation, ultrasonic flaw detection, etc. Various detection techniques.
If you are interesting in our products , We warmly welcome your enquiry and to visit our factory.
