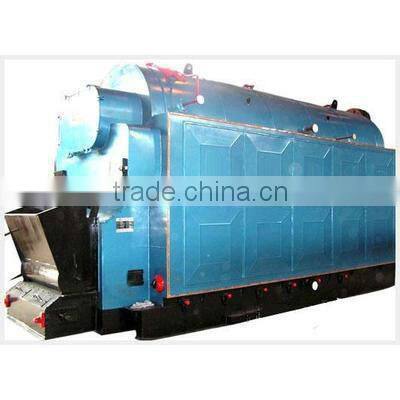

All Kinds of Horizontal Coal Fired Boiler Manufacturer

FOB Price

US$ 5,000 - 100,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.The boiler is widely used in school, factory, hospital and so on.
2.The boiler produces steam,water.
3.The quality is good.

Boiler Specification:

Model	DZL4-1.25-AII DZL4-1.6-AII DZL4-2.5-AII	SZL6-1.25-AII SZL6-1.6-AII SZL6-2.5-AII	SZL8-1.25-AII SZL8-1.6-AII SZL8-2.5-AII	SZL10-1.25-AII SZL10-1.6-AII SZL10-2.5-AII	SZL15-1.25-AII SZL15-1.6-AII SZL15-2.5-AII	SZL20-1.25 SZL20-1.6-AII SZL20-2.5-AII
Rated steam capacity(t/h)	4	6	8	10	15	20
Rated worKing pressure(MPa)	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5	1.25/1.6/2.5
Rated steam temperature (ºC)	194/204/225	194/204/225	194/204/225	194/204/225	194/204/225	194/204/225
Feed water temperature(ºC)	20	20	20	20	20	20
boiler body heating surface	99.5	134	210	233.6	310.5	478
Economizer heating surface	38	60	109	130	174	257
Effective chain great heating surface(m2)	5.3	7.8	10.2	12	18	23
design coal type	AII	AII	AII	AII	AII	AII
coal consumption(kg/h)	591	884	1150	1443	2157	2866
heating efficiency(%)	81	81	81	81	82	82
largest weight(ton)	32	21	26	28	30	35
largest transporation dimension(LXWXH) mm	7.46x2.65x3.52	7X2.7X3.5	6.9X3.16X3.5	7.89X3.26X3.53	10X3.2X3.5	11X3.2X3.

Product Line Name	Production Line Capacity	Actual Units Produced(Previous Year)
Boiler and Pressure Vessels	Steam Boiler and Accessories 80 Sets / Month, Hot Water Boiler 30 Sets / Month, Thermal Oil Heater 20 Sets, Autoclave 12 Sets / Month, Steam Holder 30 Sets / Month	Steam Boiler and Accessories 590 Sets, Hot Water Boiler 120 Sets, Thermal Oil Heater 90 Sets, Autoclave 30 Sets, Steam Holder 48 Sets

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Automatic Welding Machine	Yueda, Bota	5	3.0	Acceptable
CNC Gantry Cutting Machine	GS-II6000G2	1	2.0	Acceptable
Shearing Machine	QC11Y	1	2.0	Acceptable
Bending Machine	WC67Y	1	2.0	Acceptable
Bending Pipe Machine	W27YPC	3	4.0	Acceptable
Lathe	C630, CDS6136, CW6280B	3	6.0	Acceptable
Milling Machine	XZ6350C	1	2.0	Acceptable
Drilling Machine	Zhongjie	4	5.0	Acceptable
Vertical Lathe	CY5126E	2	6.0	Acceptable
Milling Edge Machine	Yexin & XBJ	2	4.0	Acceptable

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
UL Trasonic Thickness Gauge	TIME & TT 100	2	3.5	Acceptable
Welding Inspection Ruler	Kaifeng & 40	1	3.0	Acceptable
Burning Oven	SRJK-2-13	1	3.5	Acceptable
Resistance Oven	85-15	1	3.5	Acceptable
Dry Oven	101-2AS	1	3.5	Acceptable
CS Optics Tester	Luoyang	1	3.5	Acceptable
Material Tester	WE-300A	2	6.0	Acceptable
Impacting Tester	JB-30	1	6.0	Acceptable
Flaw Detector	Xinli, Huabo, Saisi	7	4.0	Acceptable
