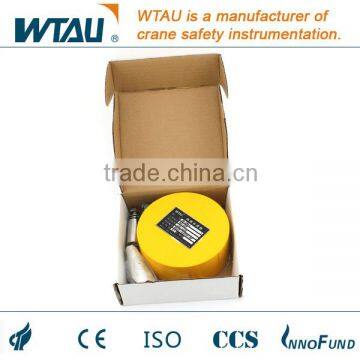

Crane angle sensor JD-180

 Crane angle sensor JD-180

1.Discription

JD - 180 type Digital Angle Sensor is composed of potentiometer and pendulum; It can be installed on crane boom. The boom on point of view is measured by the heavy hammer driving potentiometer rotating, then output corresponding voltage;

2.Main Technical Data fo digital angle sensor

Model: JD180-L (Left Mounted) JD180-R (Right Mounted)

Components:conductive plastic potentiometer (CPP)

Measuring Range: -10°~+110°

Rated Output: DC3~6.9V/0 ~ 90°

Working Voltage: DC15V

Linearity:0.1,0.5,1%

Impact Resistance: 20g15~20ms

Water Resistance: Waterproof

Working Humidity: 10~95%

Working Temperature: -20~+60°C

Installation Picture Show
