Mechanical overload indicator

                                           Mechanical dial indicator

1.Description

mechanical dial indicator Model WTZ-A(270) is a new type of smart weigh overload protector, which measures the changes of the weight of the loaded goods by a preset weight sensor and displays the actual load instantly on the display instrument. When the load reaches the given point of rated load, the acousto-optic alarm of the hoisting weight limiter will be triggered, with the switching value output displayed. The whole system is composed of sensor, connecting cable, microcomputer host and so on. The device is designed and manufactured in accordance with requirements of GB 12602-2009 “Lifting Machinery Overload Protection Devices” and GB / T 3811-2008 “Crane Design Specification”.

With reasonable layout, easy installation, simple operation, the mechanical dial indicator Model WTZ-A (270) works well with high accuracy and other advantages.

2. mechanical dial indicator Main technical parameters

Display Instrument Size: 64*128LCD

Resolving Ability: 0.1T or 0.01T

Synthetic Errors: ≤5%F.S.;

Output Signal: RS485 or 4-20mA

Working Condition: -20°C~70°C

Relative Humidity: 90%RH(20°C)

Power Supply: AC 220V ±10% DC24V±10%

IP Grade: IP44

Alarm Volume:>60db

Installation:DIN rail mounted installation

Input Signal: Less than 3 controls

Output Control: Less than 5 controls

Output Way:4-20mA,RS485,Relay

3.Main Functions

1.multilevel password protection function

2.Memory function at power-off moment, long continuous service

3.It has watchdog appliance and strong antijamming capability

4.Easy installation and debugging

5.High universality, applicable to different conditions.

The WTZ  mechanical dial indicator produced by Yichang WTAU electronic equipment co.,ltd.

achieves national advanced level and it is recognized for major scientific and technological achievements in Hubei province. Otherwise, it obtains Hubei scientific and technological achievements certificate.

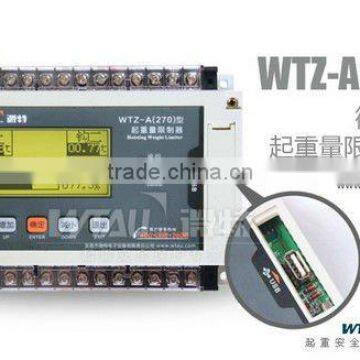

WTZ-A270 mechanical dial indicator
