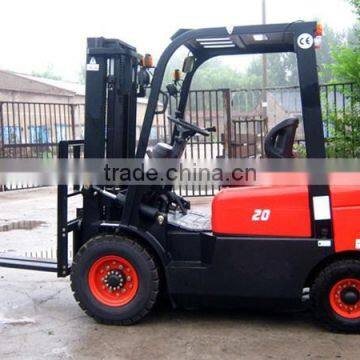

four cylinder diesel engine 2ton forklift truck

MODEL

CPCD20FR

Load capacity

2000 kg

Load center

500 mm

Power type

Diesel

Max. lifting speeds(with load)

400 mm/s

Max. driving speeds(with/without load)

17/19 km/h

Max towering (with load)

14/9 kn

Grade ability(with load)

15/20%

Lifting height

3000 mm

Free lift

60 mm

Tilting angles(forward-backward)

6°/12°

Min. turning radius

2450 mm

Min. Right angle aisle width

2050 mm

Min. under-clearance

110 mm

Dimensions

Overall length(including fork)

3605 mm

Overall width

1160 mm

Overall height(mast lowered)

2095 mm

Overall height(mast extended)

4080 mm

Overall height to overhead guard

2095 mm

Fork overhang

451 mm

Wheel base

1640 mm

Tread

Front tread

970 mm

Rear tread

970 mm

Tire

Front tire

7.00-12

Rear tire

6.00-9

Total weight

3320 kg

Fork width

100 mm

Fork thickness

40 mm

Backrest height

1000 mm

Fork length

1070 mm

Engine

Engine model

490

Rated power

39 kw

Rotate speed at rated power

2650 rpm

Max. Torque

157 nm

Rotate speed at max. Torque

1980 rpm

Type of power shift

Tor-con
