Home > Products > Alloy Chain & Rigging Hardware > G80 Shackle
G80 Shackle
Negotiable
/ Piece
20 Pieces(Min. Order)
- Shanghai China
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Seagull | |
| Model Number | G2150 |
Product Description

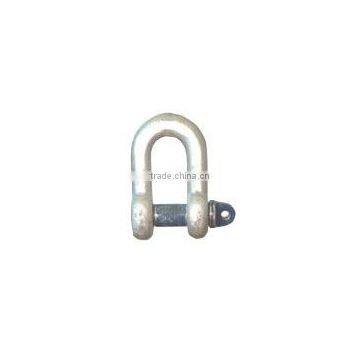

Galvanized Shackle
G2130
SIZE | WLL | PIN DIA | I.L. | I.W. IN | WEIGHT LBS | ||
| IN | TON | IN | IN | G2130 | G2150 | G2130 | G2150 |
| 3/16 | 1/3 | .25 | .88 | .60 | .38 | .06 | _ |
| 1/4 | 1/2 | .31 | 1.13 | .78 | .47 | .17 | .13 |
| 5/16 | 3/4 | .38 | 1.22 | .84 | .53 | .22 | .23 |
| 3/8 | 1 | .44 | 1.44 | 1.03 | .66 | .33 | .33 |
| 7/16 | 1-1/2 | .50 | 1.69 | 1.16 | .75 | .49 | .49 |
| 1/2 | 2 | .63 | 1.88 | 1.31 | .81 | .79 | .75 |
| 5/8 | 3-1/4 | .75 | 2.38 | 1.69 | 1.06 | 1.68 | 1.47 |
| 3/4 | 4-3/4 | .88 | 2.81 | 2.00 | 1.25 | 2.72 | 2.58 |
| 7/8 | 6-1/2 | 1.00 | 3.31 | 2.28 | 1.44 | 3.95 | 3.85 |
| 1 | 8-1/2 | 1.13 | 3.75 | 2.69 | 1.69 | 6.12 | 5.55 |
| 1-1/8 | 9-1/2 | 1.25 | 4.25 | 2.91 | 1.81 | 8.27 | 7.60 |
| 1-1/4 | 12 | 1.38 | 4.69 | 3.25 | 2.03 | 11.71 | 10.81 |
| 1-3/8 | 13-1/2 | 1.50 | 5.25 | 3.36 | 2.25 | 15.83 | 13.75 |
| 1-1/2 | 17 | 1.63 | 5.75 | 3.88 | 2.38 | 20.80 | 18.50 |
| 1-3/4 | 25 | 2.00 | 7.00 | 5.00 | 2.88 | 33.91 | 31.40 |
| 2 | 35 | 2.25 | 7.75 | 5.75 | 3.25 | 52.25 | 46.75 |
| 2-1/2 | 55 | 2.75 | 10.50 | 7.25 | 4.13 | 98.25 | 85.00 |
| 3 | 85 | 3.25 | 13.00 | 7.88 | 5.00 | 154.00 | 124.25 |
| 3-1/2 | 120 | 3.75 | 14.16 | 9.00 | 5.25 | 265.00 | _ |
| 4 | 150 | 4.25 | 14.50 | 10.00 | 5.50 | 338.00 | _ |
One year guarantee
