Home > Products > Punching Press & Power Press > AccurL JH21-45 C-frame Round Plate Punching Press Machine, Power Press

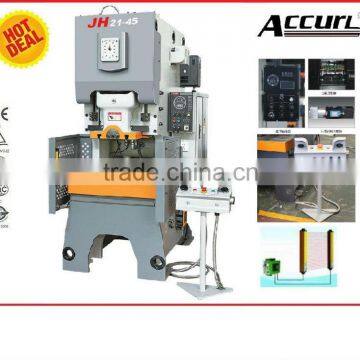

AccurL JH21-45 C-frame Round Plate Punching Press Machine, Power Press

FOB Price

US$ 13,000 - 80,000 / Set

1 Set(Min. Order)

Port Shanghai Port China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Pneumatic	Place of Origin	Anhui, China
Brand Name	AccurL	Model Number	JH21-45T
Voltage	380V or 220V/60HZ /3P (also according to your local voltage)	Power(W)	4KW
Weight	4200kg	Dimension(LWH)	14109902320mm
Certification	ISO and CE Quality Certificates,Warranty Certificates	Warranty	5 year after delivery, provide technical service all life time
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.JH21-45T Power Press
2.CE,ISO,SGS Standard
3.5 Years Warranty
4.Easy To Operation
5.Siemens Motor,Germany

Company Information

Anhui LaiFu NC Machine Tool Co., Ltd.(DIRECT FACTORY)

AccurL Machine Workshop

AccurL Machine - Attend the Canton Fair

Product Description

IN'T AccurL Brand C-Type High Precision Eccentric Press (JH21)CP1-25tons To CP1-400tons

1) Machine Structural Feature:

1. JH21 Series High Precision Presses is one of the new generation of plate process and developed by Anhui Laifu NC Machine Co., Ltd. ,The press is for cutting, punching, blanking, bending and light stretching work.

2. C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.

3. Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.

4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.

5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

6. Frames, assembly surfaces and connection holes are machined after the welding process,up to 60' in a single pass.

2) Transmission control and brake systems:

1. The Press adopts the low inertia combined dry pneumatic friction clutch and brake from OMPI, Italy, Smoother press performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life.

2. Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor. which is stepless speed regulation within a certain range and enlarge the area of craf.

3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

4. PLC from Omron electrical control system allows various auto-equipment reprogrammed accord-lng to different requirements and perform various functions,to ensure high reliability and high adaptability,

5. Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

6. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.

7. Auto grease lubrication system,easy stroke adjustment mechanism increases press versatility tremendously.

8. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;

9. The press adopts cam controller which be combined with proximity switch (Schneider) which will realize the synchronous detection and monitoring reliably.

3) Ram adjustment and Structure:

1.The RAM is a whole cast form construction which adopts imported hydraulic overload protector from Showa, Japan with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press.

4). Electrical system and the safety interlock:

1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

3. The machine by the European Union CE certification and ISO quality system certification

4. Meet standards and legislation Security (protection man / machine),such as PPRPS, EU CE,NT-16 and NR-12, NR-13.

IN'T AccurL Brand C-Type High Precision Eccentric Press (JH21)CP1-25tons To CP1-400tons

Our Services

1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.

FAQ

No.1 How about your machine quality?We are worry about the quality.

RE: ACCURL is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

No.2 Whether the machine price can be more discount?

RE: 1.ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

No.3 How about your manufactory in CHINA

RE:ACCURL located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

No.4 Where is your factory located? How can I visit there?

RE: AccurL factory is located in Anhui Province(next to NanJing),China.You can fly to NanJing LuKou airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
