Virgin Wearable UHMWPE suction box cover/dewatering elements

Virgin Wearable UHMWPE suction box cover/dewatering elements

UHMWPE suction box blades

XINXING UHMWPE suction box covers and blades are made of UHMW-PE material .
UHMW-PE dewatering element is known for its high dry-film lubricant content.This produces an extremely smooth surface, most importantly resulting in a low friction coefficient a low level of adhesion. No adhesion Excellent chemical resistance

For machines with speeds up to 800 m/min
XINXING dewatering elements in ultra high molecular weight polyethylene set themselves apart by the special sinter press procedure over a long period used to produce them, as well as an extremely high molecular weight plus their extra additive that is specifically tailored to paper machines.All these benefits ensure what is an outstanding service life for plastic coupled with a low coefficient of friction.

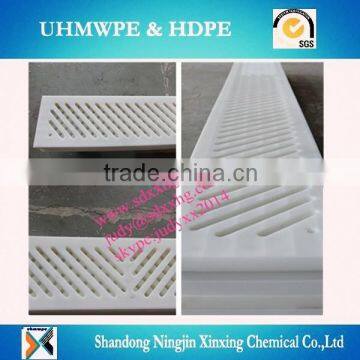

Please check the following the work functional picture of UHMWPE suction box covers and blade .
Application
At machine speeds of up to approx. 800 m/min

XINXING has specialized in UHMWPE suction box covers and blades for more than 15 years , we can produce all size and color UHMWPE suction box covers and blades for customer ! Our workers will satisfy your any need .
Any size UHMWPE suction box covers we can supply as long as it within our below standard size :

2000*1000*(10-30)mm;
3000*1500*(10-30)mm;
4700*1200*(10-30)mm;
4500*2000*(10-30)mm;
5000*1300*(10-30)mm;

Color can be customized.

Assembly

PE dewatering elements for paper machines have a high level of thermal expansion. They must therefore be installed in such a way that enables the strips or covers to expand without restriction (T-bars, corner strips, dovetail guides, screws in elongated holes). The base frame support must have a grid of approx. 250 mm to ensure flawless functionality for our covers. This support must extend to the underside of the cover to ensure it has a flat installation surface.

The advantages of our company:

1. The quantity of our presses is the most in UHMWPE industry

2. Have a long history of nearly twenty years, so we have rich experience and technology in UHMWPE industry.

3. We design the presses by ourself with special two machine recycled which can reduce time production, so our year output is the most.

4. We have our own laboratory, have the most excellent sales team, have our own technique department and supplies to the products all over the world to many large customers.

We promise to:

Produce exceptional quality products

Give knowledgeable, helpful and attentive service

Provide quick responses and fast turn-around times

For Engineer Plastics, XINXING is your first choice.

We would like to give you all the help!
