Home > Products > Synthetic resin tile > Synthetic Resin Tiles Shingle

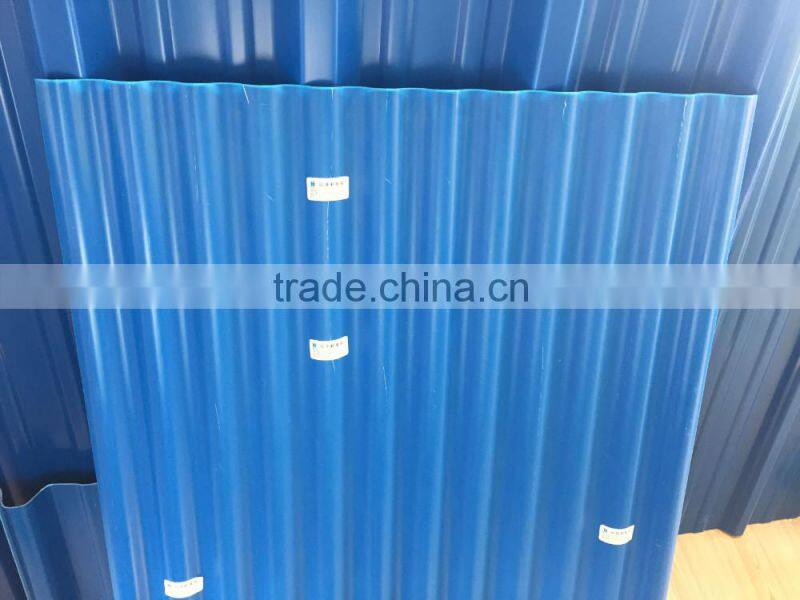

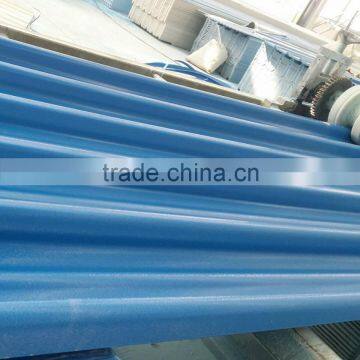

Synthetic Resin Tiles Shingle
- Lianyungang port
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Guoxianga | |
| Model Number | 720 |
Product Description
SYNTHETIC RESIN TILE
Product Detail
ASA&PMMA synthetic resin tile plate, the advantages are as belows:
Corrosion resistance;
Color stable;
Sound absorption and heat insulation;
Good water resistance;
Fireproof resistance;
Easy to install;
Good impact and low temperature resistance;
Light weight;
Stable volume;
Environment friendly and easy saving.
Technical Data for ASA&PMMA synthetic resin tiles
| Item | Content | Result | Standard |
| 1 | Appearance | Smooth surface, uniformity of thickness, no crack or other defect | GB/T 8814-2004 |
| 2 | Density | 1.648 g/m3 | GB/T 1033.1-2008 |
| 3 | Bending strength | 48.2 Mpa | GB/T 9341-2008 |
| 4 | Flexural modulus | 2.70 Gpa | GB/T 9341-2008 |
| 5 | Tensile yield stress | 26.3 Mpa | GB/T 1040.2-2006 |
| 6 | Tensile fracture strain | 26 % | GB/T 1040.2-2006 |
| 7 | Freeze-resistance properties (circulate 10 times) | Surface has no crack, hollowing, blister or stripping | JG 149-2003 |
| 8 | Falling ball impact test at low temperature (damage number / impact number) (-10℃, 1m, 1.0kg) | 0 / 10 piece | GB/T 8814-2004 |
| 9 | Thickness | 3.04 mm (we have 3 kinds of thickness: 2mm, 2.5mm and 3mm) | GB/T 8814-2004 |
| 10 | Appearance when heated to 150℃ | No bubble, crack or hard spot | GB/T 8814-2004 |
| 11 | Dimension change rate | 1.29 % | GB/T 8814-2004 |
| 12 | Co-extrusion layer thickness | 0.18 mm | GB/T 2976-2008 |
| 13 | Vicat softening temperature (B50) | 80.2 ℃ | GB/T 1633-2000 |
| 14 | Wind load | 2.0 Kpa | GB/T 7106-2002 |
| 15 | Hard to burn | B1 grade Oxygen index: 32.5 | GB/T 2406-1993 |
| 16 | Vertical Burning | FV-0 | GB/T 2408-1996 |
| 17 | Horizontal burning | FH-1 | GB/T 2408-1996 |
