Electrical Fluorescent Lighting Fixture T8 & T5 IP65

Specifications

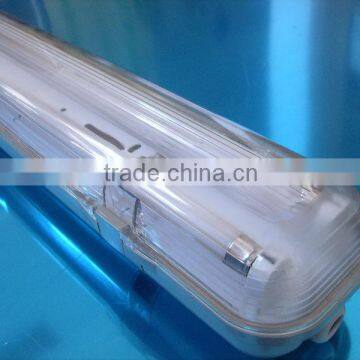

Waterproof Fluorescent Lighting Fixture T8 & T5 IP65

1.Lighting body : PC or ABS material body with high impact resistance,non-deformable structure for installations in environments with vibration.

2.Lighting cover : PC or PS safty msterial with 1.8mm on the body by means of metal clips,protects it against knocks or water flood.

3.Reflector : white painted metal sheet reflector ensures optional recovery of the light output,0.45mm thick.

4.Applications : Indoor & outdoor areas with high IP requirement, food industry chemical plants,heavy mining industries environments with the presence of cuting oil & other aggressive substances,oil industries,offshore industry,petrochemical industries,swimming pool areas,dusty humid and corrosive environments,washing houses,breweries,under canopy areas,pharmaceutical factories,loading bays,food industries,packing areas,garages,cellars and industrial complex,ware house,under-bridge,tunnel,ship,bathe center,packing lot,railway platforms,lobbies,refrigeratory and city environment luminance field ect.

5.Operating voltage : 110V ~ 130V,220V ~ 240V,50HZ ~ 60HZ.

6.Type of lamps : T8 & T5 fluorescent tube,single or double tubes,or LED-tube.

7.Wattage : T8 series ---- 1*18W,2*18W,1*36W,2*36W,1*58W,2*58W

T5 series ---- 1*14W,2*14W,1*28W,2*28W,1*35W,2*35W

8.Operating temperature : -20C ~ 50C

9.IP rating : IP65,outstanding stability of water tight gasket,waterproof,explosion proof,dustproof.

10.Electrical equipment : firstly quality inductive ballasts,starters and capacitor or electronic ballast (upon request).

11.Wiring : copper wire,cross section 0.5 square meter,PVC insulation resistance up to 105C,terminal block with maxmum allowed lead cross section of 0.25 square meter.

12.Lamp holder : G13

13.Clip : PC or stainless steel clip

14.Certificate:CE,GS,RoHS,EMC,CCC.
