Home > Products > LED Waterproof Lamp > 20w UL,CUL, DLC IP65 LED WATERPROOF LIGHTING

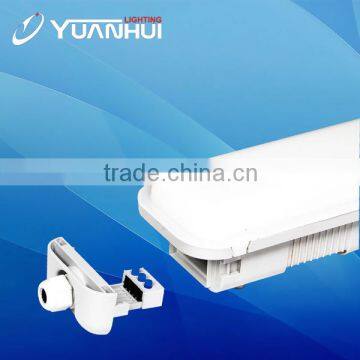

20w UL,CUL, DLC IP65 LED WATERPROOF LIGHTING
US$ 30 - 100
/ Piece
200 Pieces(Min. Order)
- Ningbo
- T/T
You May Like
-
2ft 4ft 5ft 6ft high lumen waterproof led light
-
600mm, 1200mm, 1500mm LED Tri-proof lighting fixture with high lumen
-
600mm, 1200mm, 1500mm LED Tri-proof lamp with high lumen
-
600mm, 1200mm, 1500mm IP65 LED waterproof lamp with high lumen
-
600mm, 1200mm, 1500mm IP65 LED waterproof lighting fixture with high lumen
-
LED waterproof luminaire with high lumen
Product Details
| LED Light Source | SMD3528 | Input Voltage(V) | 100-277 | |
| Lamp Power(W) | 24 | Lamp Luminous Flux(lm) | 2450 | |
| Lamp Luminous Efficiency(lm/w) | 100 | Color Temperature(CCT) | Cool White | |
| Working Temperature(℃) | -20, 50 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | PC | IP Rating | IP65 | |
| Certification | C-tick, CE, EMC, GS, LVD, SAA, UL, VDE | Warranty(Year) | 5 | |
| Place of Origin | Zhejiang, China | Brand Name | YUANHUI | |
| Model Number | WP-22W |
Product Description
Technical Data:
Name: LED linear light
Voltage: AC 100V-240V
Frenquency:50/60Hz
PF>0.9
LED:SMD3528
LED Driver: Constant current sink LED driver
LED lifetime: More than 50000hours
Ta: -25degree to 50 degree
IP Rate: IP65 LED Tri-proof lamp
Class: II
Specification of LED linear light :
- Imported plastic material (heat conduction) and Aluminum plate (heat dissipation) for housing
- LED: 3528 Epistar
- Driver: Meanwell LPF series
- Opal or transparent polycarbonate diffuser with UV protection for an optimum light distribution
- Impact resistance: IK08
- Glow Wire Test: 850 degree
- Natural silicon gasket to ensure IP65 rate
- Stainless bracket fixation: Ceiling Fixation/ Wall-Mounted/ Suspension Chain by the triangel provided
- Easy installation and quick wiring connection to ensure save much labor cost
- Emergency kit can be puted inside
- Presence Sensor
- PG13.5 cable gland
| Model No | Total Power | Ra | Lumen | CCT | Product Size (mm) | LF(mm) | Qty/CTN | Carton Size (mm) |
| WP-22W | 25W | >80 | 2500lm | 2700-3000k 4000-4500k 6000-6500k | 600*110*86 | 360 | 4 | 710*290*230 |
| WP-44W | 48W | 4500lm | 1200*110*86 | 765 | 4 | 1280*290*230 | ||
| WP-56W | 60W | 6400lm | 1530*110*86 | 940 | 4 | 1620*290*230 | ||
| WP-76W | 88W | 7200lm | 1860*110*86 | 1270 | 4 | 1950*290*230 |
Certificates:
Product Pictures:
Factory Pictures:
