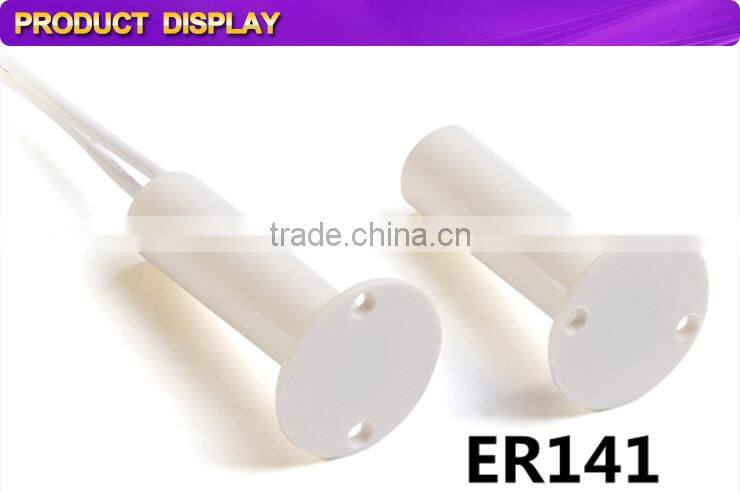

Recessed Magnetic Sensormagnetic Door Reed Switch
- Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | P&H | |
| Model Number | ER141 | Usage | Door |
Product Description
Name:
Magnetic Switch
recessed magnetic sensormagnetic door reed switch
Features
1. 3/8 inch diameter super miniature stubby switch
2. Press fit mini contact
3. 12 inch (30cm) side leads with AWG #24
4. Magnet : NdFeB
5. Size: Dia19*33L mm
6. Color : white, brown, grey
7. ABS Housing
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium Plated Reed
Technical Data:
Recessed Mounted:
Model | Loop Type | Reed Form | Operating Gap Inch (mm) | Max Contact Resistance (Ohm) | Max Rating Current (mA) | Max Switching Voltage (VDC) |
ER133 | closed | NO | 1/2(10±5) | 0.2 | 500 | 100 |
ER135 | closed | NO | 3/4(18±5) | 0.2 | 500 | 100 |
ER136 | closed | NO | 1.5(40±10) | 0.2 | 500 | 100 |
ER140 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
ER141 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
ER142 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
ER143 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
ER144 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
THE MAGNETIC CONTACTS FOR YOUR CHOOSE:

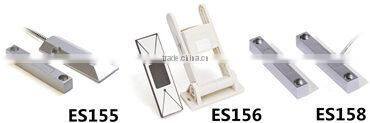

Overhead Mounted:

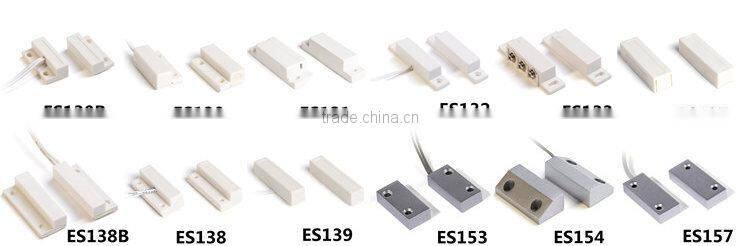

Surface Mounted:
Recessed Mounted:
