Product Details
| Place of Origin | Guangdong, China | Brand Name | Topda | |
| Model Number | T324-H |
Product Description
home automation gateway zigbee gateway indoor ceiling access point wireless router
2.4G 300M HIGH Power Ceiling AP router
Introduction
Features
Specification
Hardware specification | |||

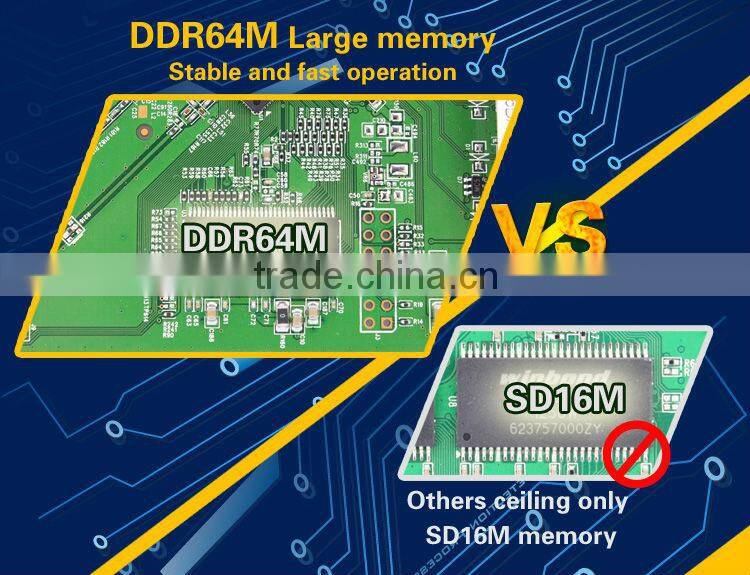

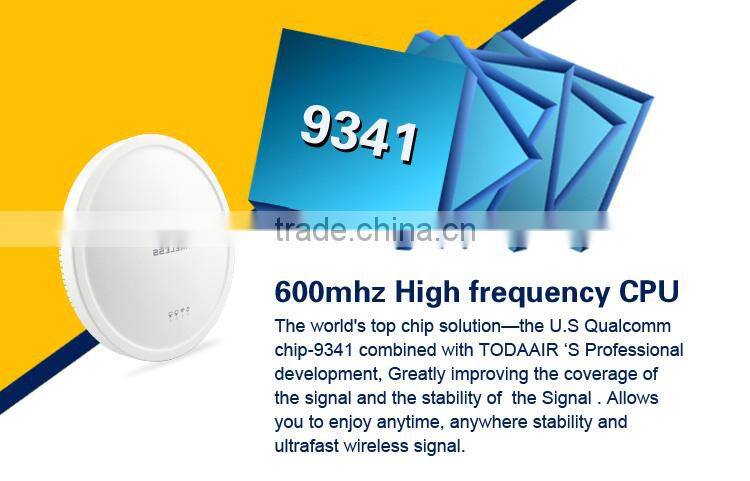

ATHEROS AR7240 400MHZ CPU RF 64MDDR 8M FLASH | |||
Frequency Bands | 2.4GHz | ||
RF Output Power | 26dBm | ||
Modulation Mode | DBPSK,DQPSK,CCK,OFDM,16-QAM,64- QAM | ||
Sensitivity | 300M:-68dBm@10% PER; | 270M:-68dBm@10% PER; | |
130M:-68dBm@10% PER | 108M: -68dBm@10% PER | ||
54M: -68dBm@8% PER | 11M: -85dBm@8% PER | ||
6M: -88dBm@8% PER | 1M: -90dBm@8% PER | ||
Data and operating parameters | |||
Automatic | 802.11n:6.5-144.44Mbps | ||
802.11b:11/5.5/2/1Mbps | |||
802.11g:108/54/48/36/24/18/12/9/6Mbps | |||
Standard | IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE 802.3u,IEEE 802.3af | ||
Support Protocols | CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5 | ||
Size and environmental | |||
Environmental | Physical performance | ||
Weight | 0.7kg | Operation Temperature | -30~65°C |
Size | 210*210*40mm | Storage Temperature | -50~80°C |
Packing | 310*250*65mm | Storage Humidity | ≤95%(non- condensation) |
Management | |||
Web management | Yes | ||
SNMP MIB | Yes | ||
Telnet | Yes | ||
Security | |||
MAC control | Yes | ||
encryption | WEP key 64/128 bits,WPA,WPA2,802.1x | ||

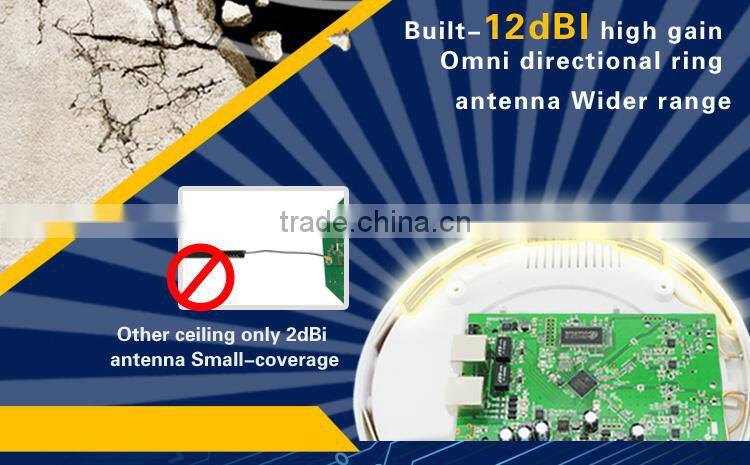

Antenna System | |||
Frequency Band(Mhz) | 2400 | ||
Polorization | Horizontal,Vertical | ||
Increase Ratio(DBi) | 12DB | ||
Model | T324-H |
Frequency range | 2.4Ghz |
Transmission Rate | 300Mbps |
Power | 1200MW |
Coverage | 500m2 |
Antenna | 12dBi |
Wireless bridge introduction

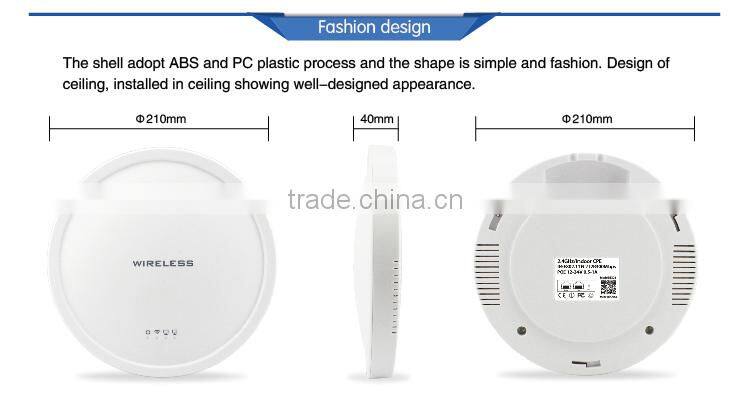

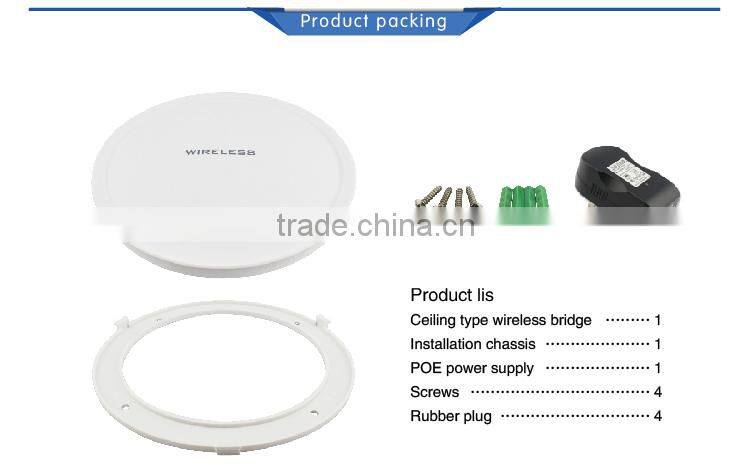

The shell adopt ABS and PC plastic process and the shape is simple and fashion.Design of ceiling,installed in ceiling showing well-designed appearance.

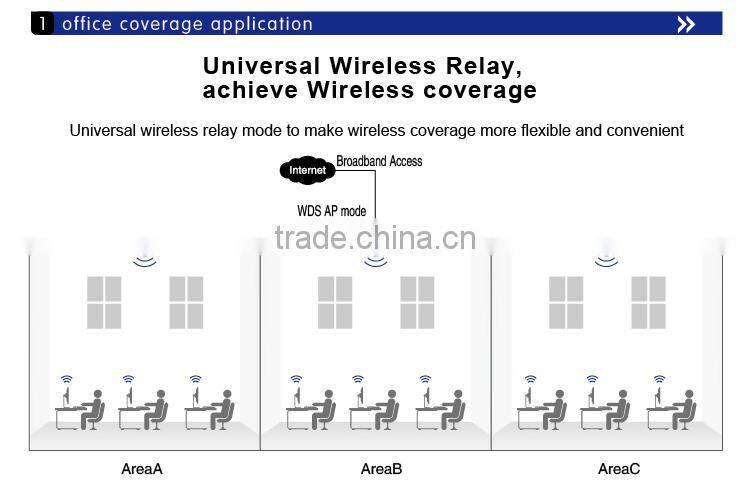

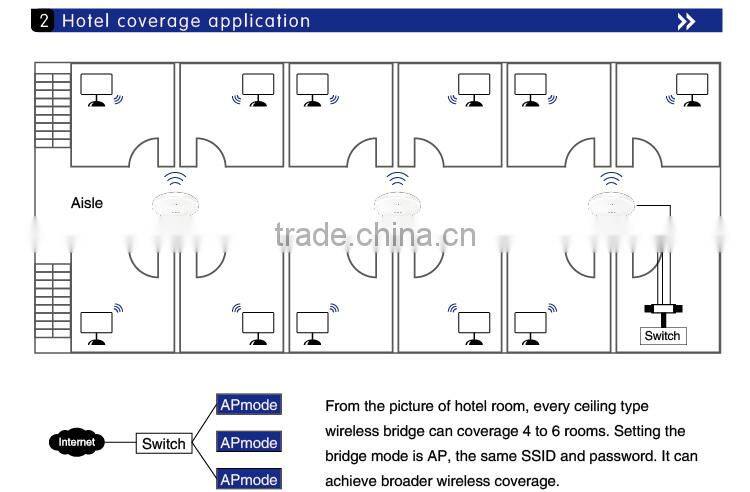

Application Case
Our device can be used by many environment,such as traffic monitoring,schools,constructional engineering.......
