Product Description
Name
Infrared Photoelectric Beam Detector

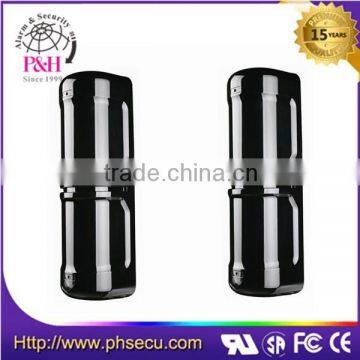

Infrared Quad Photoelectric Beam barrier Detector
Features
1.Quad Photoelectric Detector EM-D50/100/150/200/250
2.Quad synchronized pulsed beams designed for greater stability
3.Design Durability
4.Frost and dew protection
5.A.G.C (Automatic Gain Control) Circuit
6.Adjustable beam interruption period
7.Quick optical and voltage alignment to speed up positioning
Technical Data
Specifications Model | EM100-D50 | EM100-D100 | EM100-D150 | EM100-D200 | EM100-D250 |
Detection Method | Infrared photoelectric | ||||
Range Outdoor | 50m | 100m | 150m | 200m | 250m |
Range Indoor | 100m | 300m | 450m | 600m | 750m |
Beam Characteristics | Pulsed infrared quad beams | ||||
Interruption period | 50~500msec(selectable) | ||||
Power input | DC12~24V/AC11~18V | ||||
Current consumption | 95mA max | 100mA max | 100mA max | 105mA max | 105mA max |
Alarm period | 2sec(±1)nominal | ||||
Alarm output | Form C relay(AC/DC30V 0.5A max) | ||||
Tamper switch | N.C. Opens when cover is removed | ||||
Operating temperature | -25℃ to +55℃ | ||||
Environment humidity | 95%max | ||||
Alignment angle | ±10°vertical, ±90°horizontal | ||||
Mounting | Wall or pole | ||||
Weight | 3100g(Both transmitter and receiver) | ||||
Appearance | PC Resin(Black) | ||||
IP Rating | IP65 | ||||
