VFS5000A5 Box bag packaging machine line for salt, flour,coffee, powder, beans, ,seeds, etc
- Shanghai China
- T/T
You May Like
-
VFS320 automatic form fill seal small vertical vffs packaging machine
-
VFS5000B Automatic form fill seal chips snack packing machine
-
VFS320 automatic form fill seal small vffs packaging machine
-
VFS5000B Automatic form fill seal chips packing machine
-
VFS5000B Automatic weighing and filling packing machine for chips
-
VFS5000B vertical packing machine with auger filler for powder packaging
Product Details
| Condition | New | Application | Chemical, Commodity, Food, Other, Medical, Other, Chemical, Commodity, Food, Machinery & Hardware, Medical, Other | |
| Packaging Type | Bags, Film, Foil, Pouch, Stand-up Pouch, Other | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 220V/50Hz | Power | 3KW | |
| Place of Origin | Anhui, China | Brand Name | zengran | |
| Model Number | VFS5000A5 | Dimension(L*W*H) | L1650 X W1300 X H1650 | |
| Weight | 1000KG | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

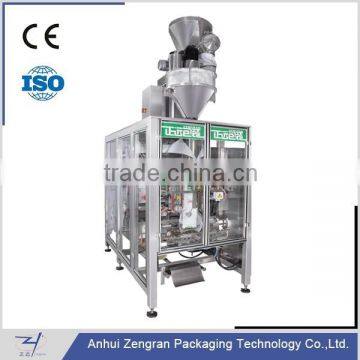

VFS5000A5 Box bag packaging machine for salt, flour,coffee, powder, beans, seeds, etc.
Application:
This unit of machine is suitable for automatic weighing, filling and packaging powder material such as milk powder, coffee powder, ice cream powder, juice powder, etc. It can make box type bag which shape is very attractive.
Advantage:
Machine fully controlled by Siemens or Omron PLC & Touch-Screen.
Minute capacity can automatically display on Touch screen.
Film transport system and horizontal Jaw motion both drived by Panasonic servo motor.
Safe quick change of tube and collar by just pull out the bracket.
Optoelectronics detect film position on collar to correct film excursion.
Electrical photo sensor inducting color code to control bag length.
Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting.
Independent temperature adjustment& code printing.
Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.
Can equip with hole punching system to pouch hole on the bag for handling.
Technical Specification:
Bag type | Box type bag /Stabilo bag ( can do both with or without back seal ) | ||
Weighing Capacity | 10-2000g (depend on product characteristics ) | ||
Weighing accuracy | ±0.2% dependent on products characteristics | ||
Speed | 10-40bags/min | ||
Bag size | Front width | 50 to 190mm | |
Side width | 35 to 90mm | ||
Length | 100 to 420mm (4 to 16.6in) | ||
Reel Film Width | ≤540mm (21.3in) | ||
Film thickness | 0.04-0.12mm (40-120mic.) | ||
Reel Outer Dia. | 400mm (15.8in) | ||
Reel Inner Dia. | 75mm (2.9in) | ||
Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
Power Consumption | VFS5000A5Packaging machine | 3KW | |
CJSL2000 Auger filler | 1.2KW | ||
Compressed Air Requirement | 0.6 Mpa 0.36 M3min | ||
Machine Size | VFS5000A5 Packaging machine | L1650 X W1300 X H1650; (in):L65.1 X W51.2 X H70.9 | |
CJSL2000 Auger filler | L1000 X W950 x H2200mm; (in):L39.4 X W37.4 X H86.6 | ||
Machine Weight | VFS5000A5 Packaging machine | 1000kg | |
CJSL2000 Auger filler | 250kg | ||
Factory Show:
Packing pics:
