Cutting Tobacco Automatic Bag Given Packaging Machine Unit-CF8-300 Model

A Brief Descriptin of the Machine:

This machine is the typical automatic bag feeding packing machine; it can finish the following work: clasp the bag, print the bag, open the bag, filling, sealing, shaping, conveying etc. It is suitable for many kinds of materials and different packing bag. It is easy to operate and adjust. And it is easy to change the packing specification; the machine is equipped with automatic checking and safety monitoring function. It can lower the consumption rate of wrapping material and keep the sealing effect and bag shape. The machine is made of stainless steel, which is hygienic and safety.

Safety and Hygiene:

 No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.

 Machine alarm and stop when the inadequate air pressure.

 Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

 Hygienic construction, the product contact parts are adopted sus304 stainless steel.

 Imported engineering plastic bearings, no need to oil, and no contamination.

 Oil-free vacuum pump, avoid the pollution of the production environmental.

Main Features and Characteristics:

 Bag type: Four side sealing, three side sealing, stand up pouch, zipper bag, plastic bag and paper bag, etc.

 Packing Speed: 30-50bags/min

 Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.

 Easy to adjust: only about 10 minutes to change different pouches.

 Frequency control: speed can be adjusted by frequency conversion within the range.

 High Automation: unmanned in weighing and packing process, machine alarm automatically when failure.

 Waterproof design: the machine surface can be washed down, so easy cleaning, and longer useful life.

Detailed Machine Item Description:

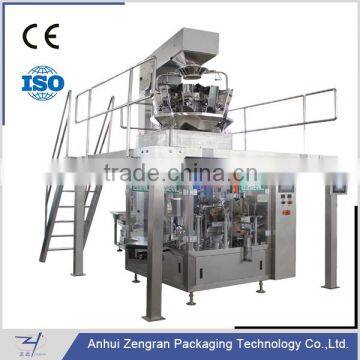

CF8-300 Automatic Granular Bag Given Packaging Machine

ZH10 Computer Weighing Machine:

 Production Line Layout Chart:

Packaging Process:

 Station 1  Bag dispensing (Bag feeding)

 Feed many pouches or bags in the bag magazine, which can move up and down, and you can feed bags very easily when it moves down, and when it moves up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

 Station 2  Coding (Date Printing)

 Ribbon printer, Ink-jet printer for optional

 Station 3  Bag Opening

             Using air to open the bag, and an opening detection device inserts into the

             opened bag to expanding it and detect if it is open or not.

 Station 4  Filling

                 There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not.

            No open no filling no sealing

Station 5  Dust Clean

                Clean the dust on the bag mouth for better heat sealing

Station 6  Heat sealing 1

            To seal the bag with a couple of heat sealing air bar

Station 7  Heat sealing 2

            Second sealing for sealing stronger

Station 8  Forming and product output

             To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically. (the sealing pattern with net or straight lines for your option)

We provide best packaging suitable for sea shipping:

1, All goods are packed in wooden box.

2, Our engineers are available to service machinery overseas to help customers to solve machine problems.

We Promise Customer Perfect Guarantee and After-Service:

 As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts.The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
