Home > Products > New Products > Drills Well Used Sale

Drills Well Used Sale

FOB Price

US$ 2 - 50 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Core Drilling Rig
Power Type	Diesel	Place of Origin	Chongqing, China
Brand Name	GOLD	Model Number	XY-2PC
Usage	Coal

Product Description

APPLICATIONS:

The drillrig is used in tunnel drilling, geological prospecting, also suitable for geological drillings of building, hydroelectric power-station, highway, roadway and harbor and drilling pile grouting hole.

FEATURES:

The drill has such features as small body, light weight; especially available for construction of hydroelectric power-station. It can get two series of speeds by means of substitution of one pair of helical gears for other one.

Technical Specifications

Drill Capacity(m)	50 drill rod	150
	4343 Wire line drillrod	300
spindle speed (r/min)	Forward	81;164;298;334;587;1190
	reverse	98;199
Max torque(Nm)		1110
angle range		0-90°
Max spindle pull force (KN)		45
spindle stroke		500
hoist max lift capacity (singlerope) (KN)		20
oil pump		CB32 gear oil pump
Power unit	diesel engine	295D 13.2KW
	electric motor	YD180L-4/8 17/11KW
drill body weight(excluding power)(Kg)		650
overal dimensions(L×W×H)(mm)		1720×800×1300

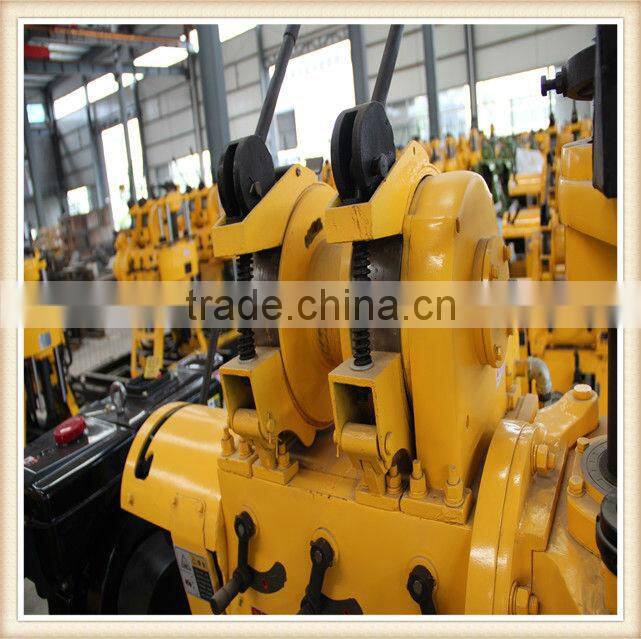

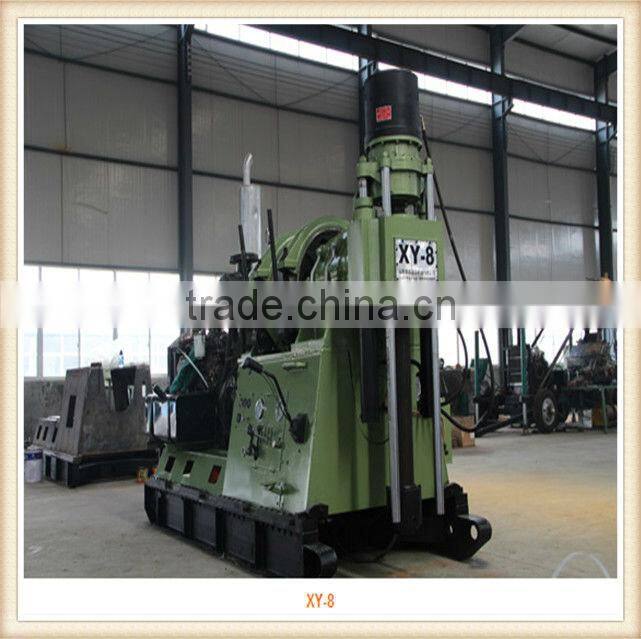

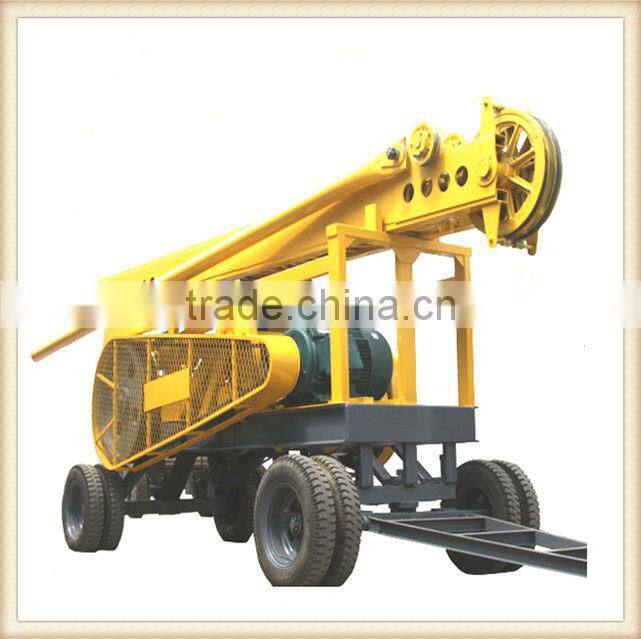

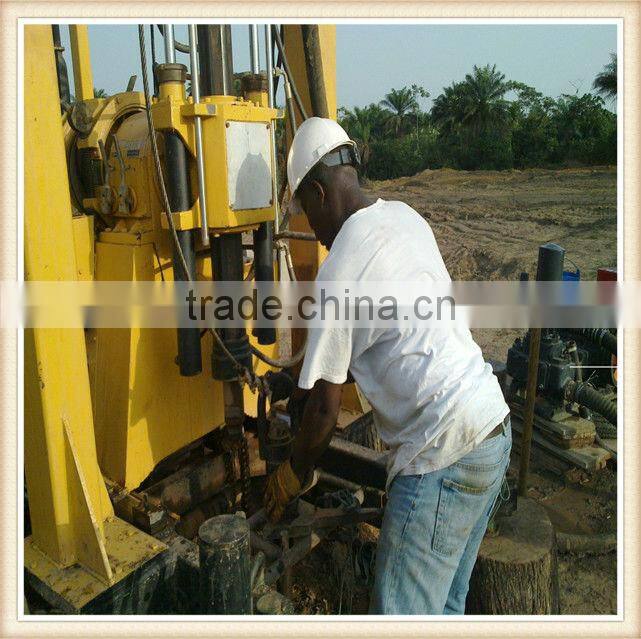

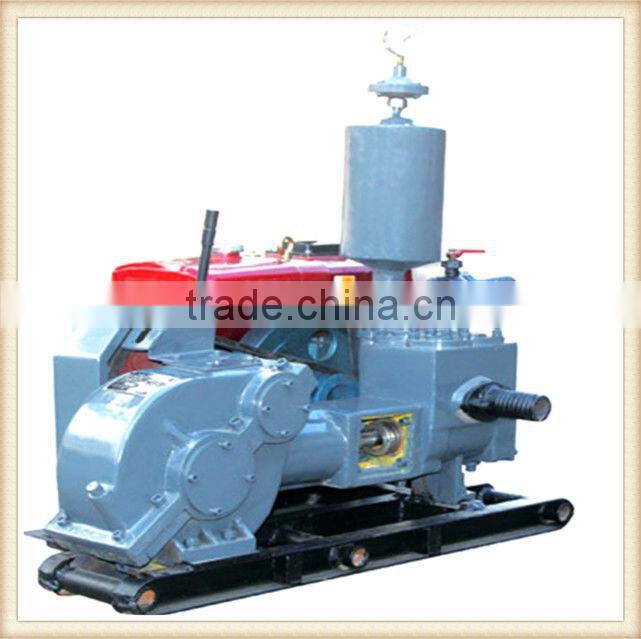

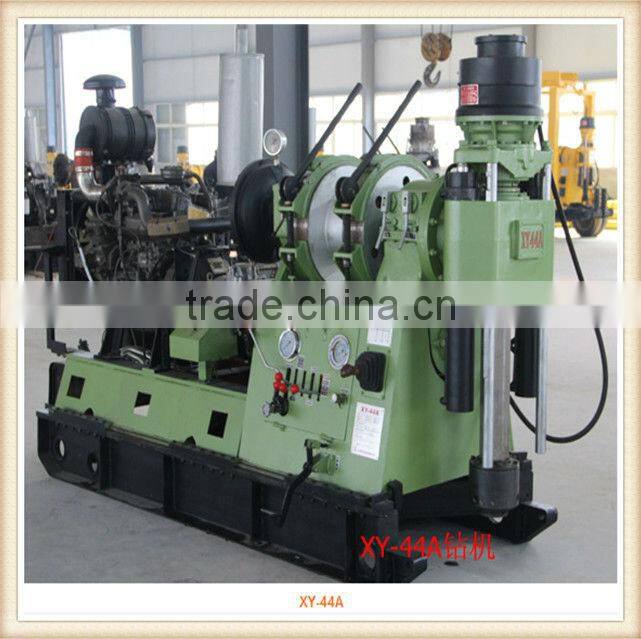

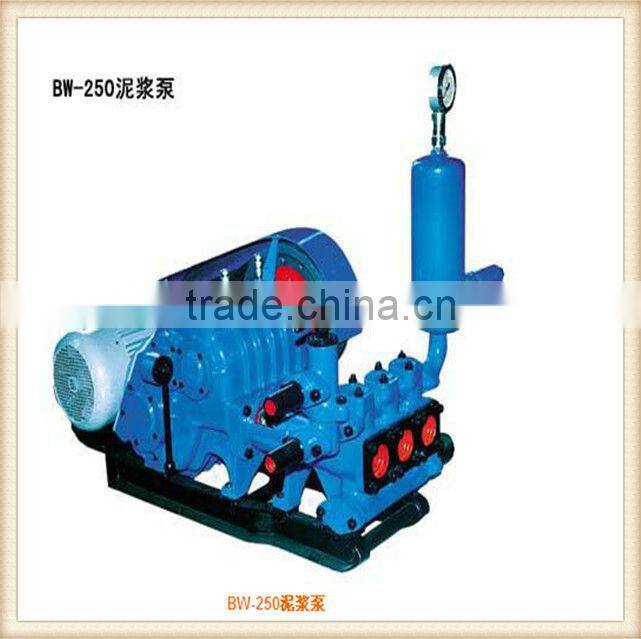

3. Products Showcase

Related products

4,why GOLD Team

GOLD'sproducts spread all over the world

GOLD Established in 2009,Gold is a high -tech enterprise specializing in design,manufacture and sale of geological instrument.

Gold's products are manufactured stricity in accordance with industrial standard and have passed through quality and technical standard evaluation as well as quality inspection.

1.second to none slaes service

2. Our factory self-produced, the quality can be strictly controlled Quick delivery, firm package

3.Professional sales team, Providing any feedback from the keen customers

4. Regarding customer benefit as the starting point, pay attention to the real needs of the customer

5. IS09001 Certificate.

6.Shipping by Express Delivery TNT,UPS,EMS,DHL,Fedex,Dpex etc.

Air Freight and sea transportation

We are ready for all challenges!
