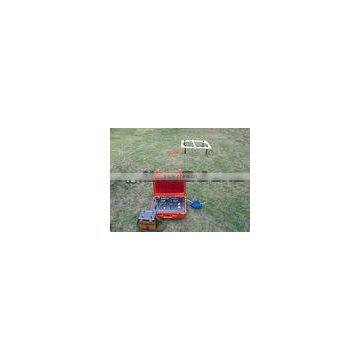

Low Consuming Electricity WTEM Series Shallow Tem System For Prospecting Gas Field

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

GOLD

Model Number

WTEM-2Q

Application:

1.Mineral survey, such as iron ore, lead-zinc ore, copper ore

2.Mineral prospecting as mineral ore depth, orientation, continuity and ore shape, size and scale

3.Oil, natural gas survey, related geological structure

4.General survey, local survey and geological mapping

5.Base station for aerial or marine magnetic survey

6.Fault detection

7. Archaeology

8. Hydrogeology

9. Engineering survey, such as pipe prospecting

10. Monitoring earthquake auspice, volcano and other environmental disasters.

11.Small ferromagnetic material prospecting.

Technical specifications:

Channels	1. channel(standard configuration, for separate gradient measurement) 2. channels(optional, for simultaneous gradient measurement)
Measuring range	20,000 nT ~ 100,000nT
Accuracy	±1nT
Resolution	0.1nT
Gradient permitted	≤8,000nT/m
Measuring speed	larger than 2s/reading
Station measuring interval	2~60s, optional
Data stored	large than 2 billion points readings, with power-off protection
GPS Positioning accuracy	higher than 2.5m CEP
LCD display	160×160, with backlight
Keyboard input	16 keys
Port	USB standard serial port
Power source	Rechargeable lithium battery (for 4000 times reading), external power supply optional (12V)
Console dimension	206mm × 85mm ×155mm
Weight	1.5Kg (including battery)
Sensor size	φ75mm×155mm
Sensor weight	0.8 Kg
Working temperature	-10 °C~+50 °C
