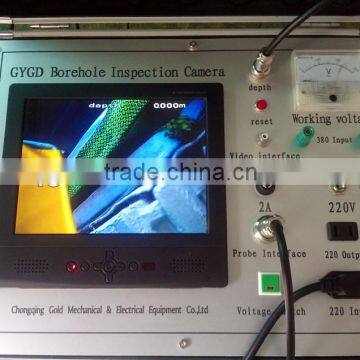

Clear Color Borehole TV Realtime View

Water Well Inpection Camera 2000m Borehole Cameras

Function :
          1  To inspection the water leakaging of the well ,
          2  To imaging the blockage of the well
          3  To help the repair of the well
          4  Provide broadcast quality video of the underwater  world
             back to the surface from up to within 1000m below,
          5  This camea can be viewed in real time or recorded for later
             vieweing

Feature:
          1 Super high resolution color picture
          2 Low light operation
          3 Led  underwater light
          4 Stainless steel housing
          5 Military grade watertightness cable
          6 Ability to attach up to deep place and stand large pressure
            of water.

Technical Parameter:

1.Image sensor:1/3CCD
2.Resolution:480TVlines
3.Sensitivity:0.1LUX
4.Pixel:720*576
5.Camera housing material:stainless steel
6.Grade: military
7.Working depth: 2000m
8.Working temperature:-10celsius to +40celsius
9.Power:AC220V
10.Frame rate:25frame/second
11.Light source: LED
12.Cable:within 1000m watertightness cable
13.Display:14inch LCD display
14.Camera angle:45degree-60degree
15.Camera size:75mm(diameter)*300mm(length).
