Home > Products > Well Logging > Hot Sale Geophysical Armoured Logging Cable Underground Borehole Armoured Logging Cable
Hot Sale Geophysical Armoured Logging Cable Underground Borehole Armoured Logging Cable
Negotiable
/ Meter
1 Meter(Min.Order)
- 10000 Meter / Meters per Month
- Chongqing
- T/T
You May Like
-
50m 100m 200m 300m Digital Water Depth Meter
-
2000m Auto Wireline Cable Logging Winch
-
JQX-2 Geological Portable Digital Inclinometer and Sensor Inclinometer for Borehole Inspection
-
Geophysical Borhole Logging Tester JGS-1B Water Well Logger
-
Hot Sale 3/16" Geological Logging Armoured Cable
-
1000m Drilling Borehole Geological Logging Winch
Product Details
| Place of Origin | Chongqing, China | Brand Name | Gold | |
| Model Number | Geophysical Armoured Logging Cable | Insulation Material | Other, Underground Borehole Armoured Logging CableCable | |
| Type | Other, Geophysical Armoured Logging Cable | Application | Other, Underground Borehole Armoured Logging Cable | |
| Conductor Material | Other, Geophysical Armoured Logging Cable | Jacket | Other, Underground Borehole Armoured Logging Cable |
Product Description

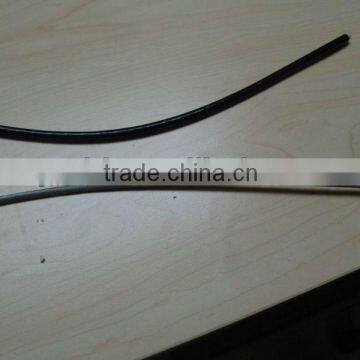

Geophysical Armoured Logging Cable
Underground Borehole Armoured Logging Cable
Construction:
Copper Construction: 6×0.20+1×0.21 mm 6×0.0078+1×0.0082"
Insulation PP : 0.19 mm 0.00748"
Protection: 3.00 mm 0.118"
Armor: (Inner) 18×0.47 mm(324N) 12×0.0185"(72.8lbs)
(Outer) 18×0.64 mm(601N) 18×0.0251"(135lbs).
Physical:
Cable Diameter: 4.70mm±0.10mm 0.18″±0.0039″
Cable Weight in Air: 85 kg/km 57.4 lbs/kft
Temp Rating: 150 °C 300 °F
Mechanical:
Cable Breaking Strength: 13 kN 2900 lbs
Minimum Shave Diameter: 260 mm 10.5″
Cable Stretch Coefficient: 4.78 m/km/5kN 4.25 ft/kft/klbs
Electrical:
Voltage Rating: 200 VDC 200 VDC
Insulation Resistance: 500 MΩ·km 1500 MΩ·kft
Resistance Typical: 84.3 Ω/km 25.6Ω/kft
Capacitance @ 1 kHz: 190 pf/m 58 pf/ft.
