JGS Intelligent Engineering Logging System with Logging Tool and Logging Equipment

FOB Price

USD $1 - $2 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Gold		Model Number	JGS
Power	Electronic		Usage	Auto Testing Machine

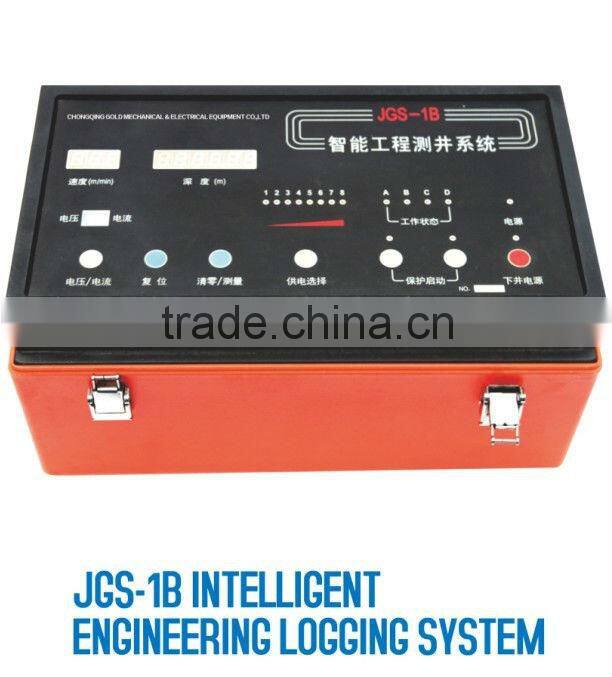

JGS Intelligent Engineering Logging System with Logging Tool and Logging Equipment

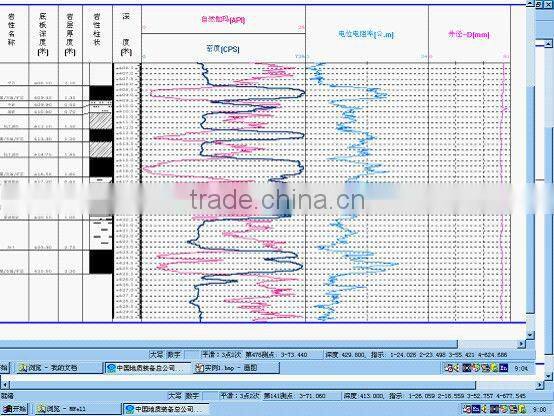

1. Main Data collection Gamma Ray Logs and sofware:

1. Coal Field Digital Integrated Logging

2. Hydrological Engineering Digital Integrated Logging

3. Solid Metal Ore Digital Integrated Logging

4. Other Minerals Digital Integrated Logging

5. External Laptop (Desktop PC)

6. For upward logging, also for downward logging

7. Receive digital signal, analog signal

8. taps of power supply current, Optional

9. Automatic sampling as per depth interval, sampling interval arbitrarily

10. Indoor simulation logging, repeatability observation of instruments and probes

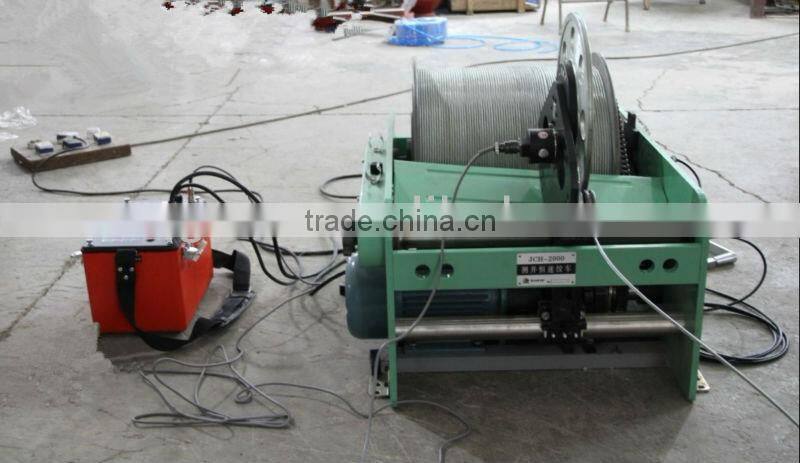

2. Autoamtic Winch and Cable

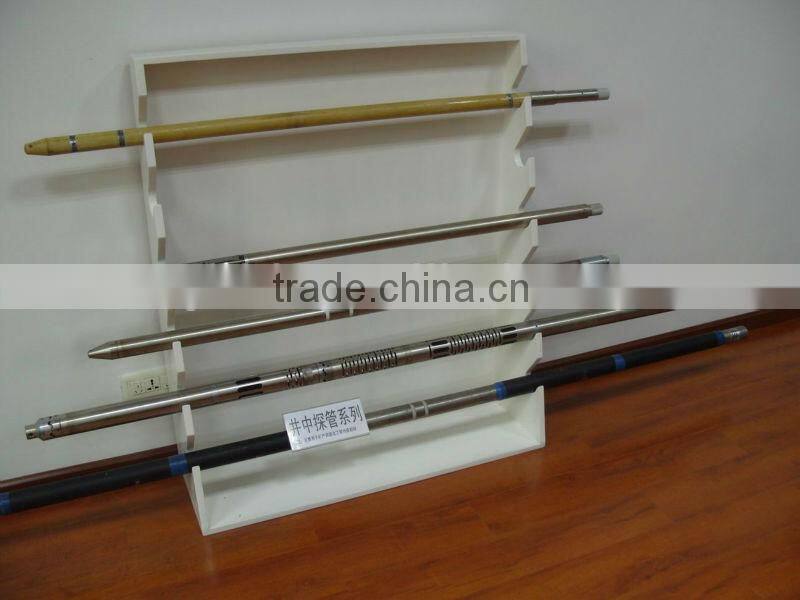

3. Probe & Sonde

No.	Probe name
1	M552 Combined sidewall probe
2	M451 Combined density probe
3	S524-1S Acoustic wave probe
4	CZ521- Combined Natural Gamma probe
5	W422Temperature and liquid resistivity combined probe
6	CX3019 SP, inclination, natural gamma combined probe
7	ZH-1 Natural gamma, inclination, temperature, acoustic wave combined probe
8	ZH-2 Natural gamma, inclination, Three direction laterolog, Temperature and liquid resistivity combined probe
9	JSC-1 Digital inclination probe
10	S524 Acoustic wave probe
11	H411 Magnetic susceptibility probe
12	X411 Three-lateral direction resistivity laterolog probe
13	J411 Caliper probe
14	LLY-1Flow probe
15	R411 Natural gamma probe
16	JD-1Conventional resistivity log probe
17	JDS-1 Brush electrode probe
18	JD-3 Soft-elctrode probe
