Home > Products > Seismograph > CDJ Series Digital Seismic Geophones Seismic Sensor

CDJ Series Digital Seismic Geophones Seismic Sensor

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port CHONGQING
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Gold
Model Number	CDJ Series Digital Seismic Geophones

Product Description

CDJ Series Digital Seismic Geophones

Description

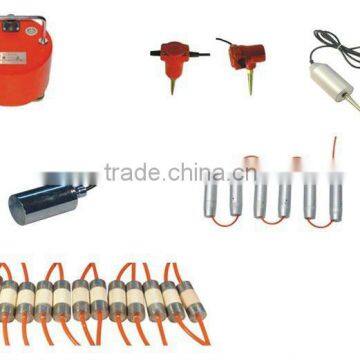

CDJ Series Digital Seismic Sensor (Geophone) are available frequencies from 1Hz to 100Hz vertical and horizontal direction, and geophone-consisted three-component geophones, borehole geophone, tomographic imaging geophone series with stable performance, high fidelity and consistent quality in oil, gas exploration and other fields.

Applications and Features

1~3Hz geophones applied for deep seismic prospecting, natural earthquake surveillance and prediction, pulse and microseismic measurement for bridge and highways, etc.
4~100 Hz widely used to seismic prospecting of petroleum, coal, metallurgy, defense engineering and etc.
High sensitivity, low-distortion, reasonable damping coefficient, good linear response, good parameter conformity, higher resolution and excellent waterproof property.
Small-sized, easy to install, easy to operate, large ambient temperature range, can meet the demand of multi-wave component seismic data acquisition technology

Table 1

Medium–High Frequency (vertical and horizontal) Geophones

Parametertype name

CDJ-Z/P4

CDJZ/P4.5

CDJ-Z/P10

CDJ-Z/P15

CDJ—Z/P28

CDJ-Z/P30

CDJ—Z/P38

Natural Frequency (Hz)

4±10%

4.5±10%

10±5%

15±5%

28±5%

30±5%

38±5%

Sensitivity G
(v/cm.s-1)

0.28±5%

0.26±5%

Coil Resistance Rc(Ω)

365±5%

500±5%

650±5%

Internal Resistance
(Ω)

345±5%

335±5%

310±5%

415±5%

560±5%

Damping Coefficient Bt

0.7±10%

0.58±10%

0.62±10%

0.6±10%

Harmonic Distortion D

≤ 0.2

Insulating Resistance
Ri (MΩ)

≥ 20

Coil’S Maximum Displacement P-P(mm)

Suspension Mass( g )

13.2

12.8

8.6

7.9

Working Temperature
(°C)

— 40 ~ + 70

Weight ( g )

255

Table 2

Medium–High Frequency (vertical and horizontal) Geophones
Parametertype name	CDJ-Z/P40	CDJ-Z/P60	CDJ—Z/P80	CDJ—Z/P100
Natural Frequency (Hz)	40±5%	60±5%	80±5%	100±5%
Sensitivity G (v/cm.s-1)	0.26 ±5%	0.3 ±5%	0.25 ±5%	0.25 ±5%
Coil Resistance Rc(Ω)	690±5%	1030 ±5%	735 ±5%	1080 ±5%
Internal Resistance (Ω)	580 ±5%	800 ±5%	685 ±5%	1020 ±5%
Damping Coefficient Bt	0.6 ±10%	0.6 ±10%	0.55 ±10%	0.5 ±10%
Harmonic Distortion D	≤ 0.2
Insulating Resistance Ri (MΩ)	≥ 20
Coil’S Maximum Displacement P-P(mm)	2
Suspension Mass( g )	7.9	5.9	5.5	5.2
Working Temperature (°C)	— 40 ~ + 70
Weight ( g )	255
