Portable Multi-function Hydraulic Terminal Crimping Tool 10-120 Mm2 for Crimping Cu/Al Terminal Tool
US$ 15 - 50
/ Piece
50 Pieces(Min. Order)
- Ningbo/Shanghai
You May Like
-
Plastic Carrying Case Multi-function Hydraulic Cable Lug Crimping Tool for Crimping Terminal
-
Multi-function Hydraulic Crimping Tool With Automatis Safety Set for Crimping Terminal
-
Plastic Carrying Case Multi-function Hydraulic Crimping Tool for Crimping Terminal
-
Multi-function Hydraulic Crimping Tool With Automatis Safety Set
-
Multi-function Hydraulic Crimping Tool
-
Plastic Carring Case Portable Hydraulic Cable Lug Crimping Tool With Crimping Moulds 10-120 Mm2
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JuZhou | |
| Model Number | YQK-120C | Type | Other, Hydraulic Crimping Tools, Hydraulic Crimping Tool |
Product Description
Hydraulic crimping tool
Description
pipe crimping tool YQK-120C crimping
range:10-120mm
Crimping force : 8T
Crimping range :10-120mm2
Max travel :14mm
Accessories: 10, 16 , 25 , 35 , 50 , 70, 95, 120mm2
Delivery time
we have products in warehouse ,can send goods in 7-20 days after accept payment
Payment
T/T best ,or paypal
Packing
one pc in one plastic box ,fore plastic box in one paper box
| Item NO. | Crimping range | Max pressure | Max travel | Mould | Crimping type |
| YQK-70 | 4-70 mm2 | 6T | 12mm | 4, 6, 8, 10, 16, 25, 35, 50, 70 mm2 | Besiege pressure |
| YQK-120 | 10-120 mm2 | 8T | 10mm | 10. 16, 25, 35, 50, 70, 95, 120 mm2 | Besiege pressure |
| YQK-120C | 10-120 mm2 | 8T | 14mm | 10. 16, 25, 35, 50, 70, 95, 120 mm2 | Besiege pressure |
| YQK-240 | 16-240 mm2 | 10T | 18mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 | Besiege pressure |
| YQK-300 | 16-300 mm2 | 10T | 18mm | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2 | Besiege pressure |
specification

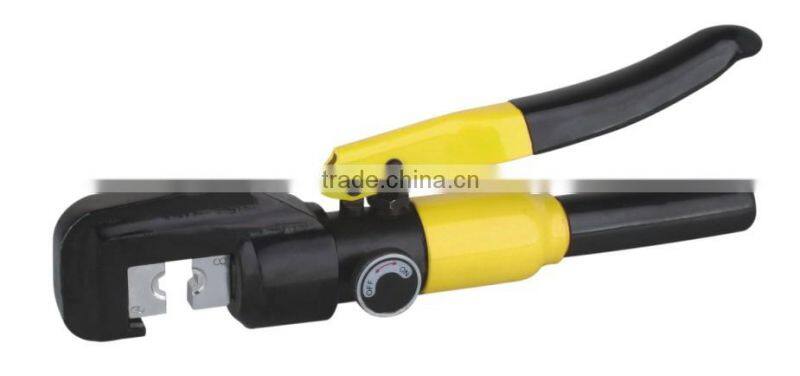

ITEM NO.: YQK-70
| Item No | YQK-70 |
| Crimping range | 4-70 mm2 |
| Max pressure | 6T |
| Max travel | 10mm |
| Accessories | 4, 6, 8, 10, 16, 25, 35, 50, 70 mm2 |
| Crimping type | Besiege pressure |

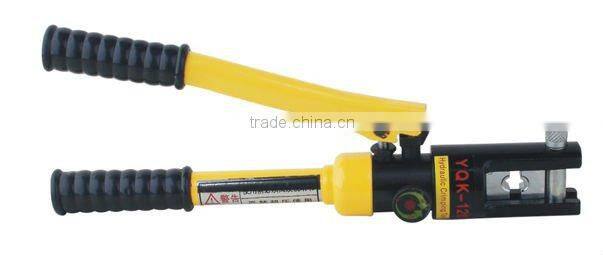

ITEM No.:YQK-120
| Item No | YQK-120 |
| Crimping range | 10-120 mm2 |
| Max pressure | 8T |
| Max travel | 10mm |
| Accessories | 10, 16, 25, 35, 50, 70, 95, 120 mm2 |
| Crimping type | Besiege pressure |
ITEM No.:YQK-120C
| Item No | YQK-120C |
| Crimping range | 10-120 mm2 |
| Max pressure | 8T |
| Max travel | 14mm |
| Accessories | 10, 16, 25, 35, 50, 70, 95, 120 mm2 |
| Crimping type | Besiege pressure |
ITEM No.:YQK-240
| Item No | YQK-240 |
| Crimping range | 16-240 mm2 |
| Max pressure | 10T |
| Max travel | 18mm |
| Accessories | 16, 25, 35, 50, 70, 95, 120 150, 185, 240 mm2 |
| Crimping type | Besiege pressure |

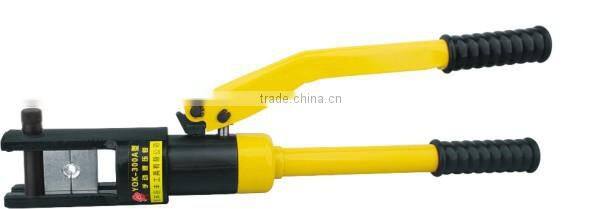

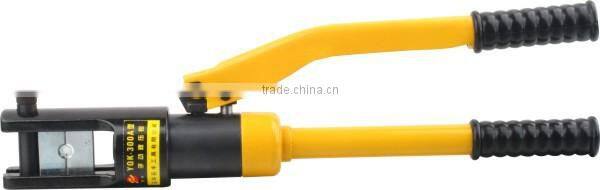

ITEM No.:YQK-300
| Item No | YQK-300 |
| Crimping range | 16-300 mm2 |
| Max pressure | 10T |
| Max travel | 18mm |
| Accessories | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2 |
| Crimping type | Besiege pressure |
EP-430 Quick Hydraulic Pliers(Strap safety set)
| Crimping range | 50-400 mm2 |
| Max Pressure | 16T |
| Max travel | 30 mm |
| Accessories | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2 |
| Crimping type | Besiege Pressure |

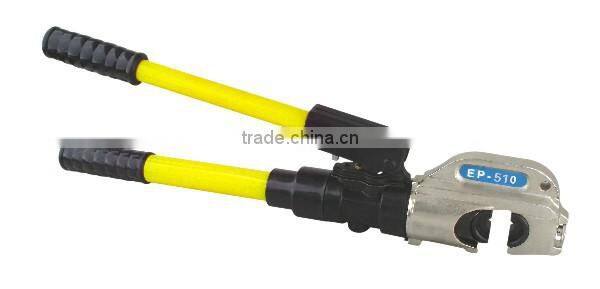

EP-510 Quick Hydraulic Pliers(Strap safety set)
| Crimping range | 50-400 mm2 |
| Max Pressure | 16T |
| Max travel | 38mm |
| Accessories | 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2 |
| Crimping type | Besiege Pressure |
