Survey Instruments GPS RTK GNSS GPS

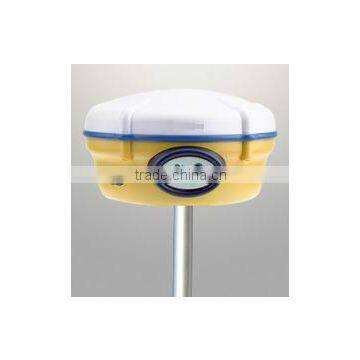

V10 GNSS RTK Surveying Equipment/GPS

External Communication Module

Available for UHF radio or URS data transfer station

16 channels can be used on UHF radio, High or Low frequency alternative

100 channels can be used on URS data transfer station, maximum transmission distance is 50km.

 Technique Parameter of V10 GNSS RTK Serveying Equipment/GPS

1, Receiver Component

TECHNICAL SPECIFICATIONS

220 Channels:

GPS: Simultaneous L1 C/A, L2E, L2C, L5

GLONASS: Simultaneous L1 C/A, L1 P,

L2 C/A (GLONASS M Only), L2 P

SBAS: Simultaneous L1 C/A, L5

GIOVE-A: Simultaneous L1 BOC, E5A, E5B, E5AltBOC1(optional)

GIOVE-B: Simultaneous :L1 CBOC, E5A, E5B, E5AltBOC1(optional)

GALILEO: (Upgraded to reserve)

Advanced Trimble Maxwell 6 Custom Survey GNSS Technology

High precision multiple correlator for GNSS pseudorange measurements

Very low noise GNSS carrier phase measurements with <1 mm  precision in a 1 Hz bandwidth

Proven Trimble low elevation tracking technology

Initialization time3 . . . . . . . . ......................typically <10 seconds

Initialization reliability3 . . . . . . . . . . . . . . . . >99.9%

1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 & 50 Hz positioning outputs (Defaults 10HZ)

Up to 50 Hz raw measurement & position outputs

Reference outputs . . . . . .CMR, CMR+, RTCM 2.1, 2.2, 2.3, 3.0 , 3.1

Navigation outputs . . . . . . ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK,VHD,ROT,GGK, GGA,GSA,ZDA,VTG,GST,PJT, PJK, BPQ,GLL,GRS,GBS and Binary: Trimble GSOF

2,Internal UHF Radio Component

Frequency bands: 225-235MHz, 450-470MHz, meeting different requirements.

19.2k bps wireless data rate

16 flexible switching channels (direct-switched of the panel buttons without controller or computer), users can alter the frequency table.
