Multi Channels Resistivity Tomography System for Underground Exploration
- Chongqing
 - T/T Credit Card

You May Like
-


DUK-2A Multi-electrical Underground Water Detector Water Detector Equipment
 -


Geophysical Equipment 4 Probe Resistivity Meter Resistivity and Ip Meter for Groundwater
 -


DDC-8 Underground Water Detector
 -


Underground Water Detector and Well Ground Water Detector
 -


Survey Instruments GPS RTK GNSS GPS
 -


Geological Water Exploration Instrument DDC-8 Electronic Auto-Compensation Instrument (Resistivity Meter)

Product Details
| Place of Origin | Chongqing, China | Brand Name | GOLD | |
| Model Number | WGMD | Power | Electronic | |
| Usage | Other, Resistivity Meter Imaging Exploration System |
Product Description
WDJD-4 Multi-function Digital DC Resistivity/IP Meter is our new generation model with 32 single-chip and 24 bit A/D technology on the basis of years of experience of design and manufacture, which could carry on Res and IP survey at the same time. It features multiple functions, high accuracy, fast speed, high reliability and excellent expandability. Measured data of WDJD-4 can be processed by other multi-electrode resistivity software, which makes the interpretation more convenient.

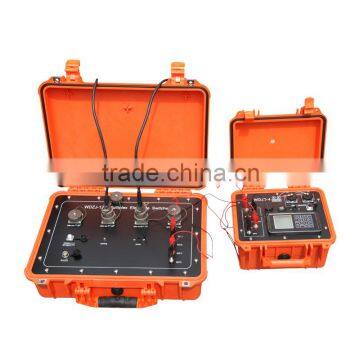

The single WDJD-4 can conduct general electrical resistivity/IP survey with twist pair wire, iron electrodes and power source. If WDJD-4 is used together with WDZJ-4 multiplex electrode switcher multi-electrode cable, electrodes and power source, it can conduct not only general electrical resistivity/IP survey but also multi-electrode 2D Resistivity imaging.
Res/IP sounding

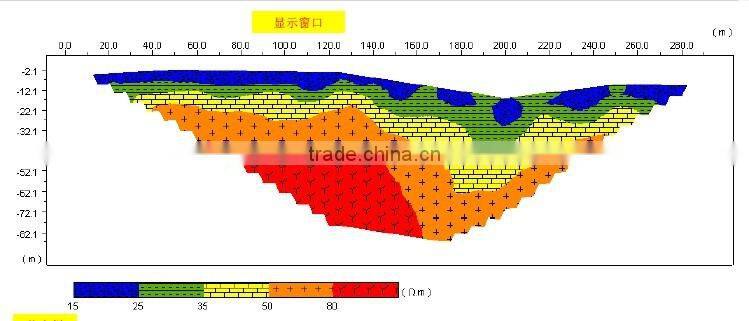

Res 2D imaging survey
| Receiving | |
| Voltage | ± 6 V,±1 % ± 1LSB |
| Measurement accuracy | if Vp≥10mV, ± 5‰ ± 1LSB; if Vp < 10mV, ±1% ± 1LSB; |
| if Vp≥10mV, ± 5‰ ± 1LSB; if Vp < 10mV, ±1% ± 1LSB | |
| Input impedance | ≥50MΩ |
| Measurement precision of apparent polarizability | ± 1%± 1LSB |
| SP compensation range | ± 10V |
| Current | 6 A,±1% ± 1 LSB |
| Measurement accuracy | if IP≥10mA, ± 5‰± 1LSB; if IP<10mA,± 1%± 1LSB |
| Suppression | over 90Db for 50Hz industrial frequency (common mode interference or differential mode interference) |
| Transmitting | |
| Maximum transmitting power | ±6600W |
| Maximum voltage | ±1100V |
| Maximum current | ±56A (when voltage ≤900V) |
| Pulse width | 1~60s, duty cycle is 1:1 |
| Others | |
| Working temperature | -10°C~+50°C (Environmental), 95 %RH |
| Storage temperature | -20°C~+50°C (Environmental) |
| Power supply | internal 12V 9Ah rechargeable battery , lasts for 30 hours (or 12V external power supply) |
| Overall current | ≤55mA |
| Weight | ≤4.5Kg |
| Dimension (LxWxH) | 270mmx246mmx175mm |
