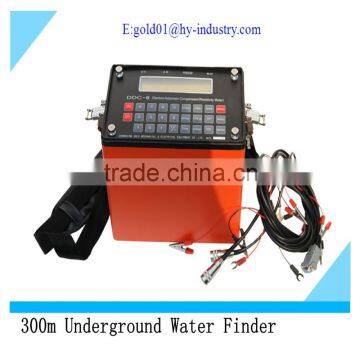

DDC-8 Resistivity Meter Instrument Water Finder

FOB Price

USD $1 - $10 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	GOLD
Model Number	DDC-8

DDC-8 Resistivity Meter Instrument Water Finder

Main Applications and Features

By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.
Microcomputer controlled, direct-reading resistivity, various electrode arranging mode, data protection against power-failure
Underground Resitivity Meter DDC-8 Geological Underground Water Finder

This instrument applies to Electrical Prospecting such as Vertical Electrical Sounding, Electrical Profiling, Charging Method and Spontaneous Potential Method, etc. on ground and in trench.

Technical Specifications

Maximum Power Supply Voltage	700V
Maximum Power Supply Current	4A
Voltage Measuring Range	±4V
Voltage Measurement Accuracy	±1%±1 digit
Current Measuring Range	0~4A
Current Measurement Accuracy	±1%±1 digit
SP Compensation Range	-1000mV ~ +1000mV
Instrument Input Impedance	>30MΩ
Working Temperature	-10°C~50°C
Volume	244×154×237mm

Usage: 500m Ground Water Detector
