Mapping Underground Geology Used by Resistivity Meter Measurement

Multi-Electrode Resistivity Survey System Mappingunderground  Water structure Mapping aquifer

Main Applications

• Widely used for high-resolution research, tomography and monitoring applications.
• Coal mining gobs, caves of Custer area, geological disasters survey like landslides other geological disasters.
• High resolution engineering geological exploration like factory foundations, highways, bridges, railways, civil engineering, hydrology, engineering, environmental.
• For landslides and other geological disaster exploration.
• Metal and non-metallic mineral resources exploration and geothermal exploration.

  Main Features

• Multiple function in one machine: The instrument has four functions including long lead IP instrument, 2D high density resistivity meter, 2D high-density IP instrument, and medium-power short lead transmitter.
• Easy for Operation: The instrument adopts all-digital automatic measurement, thus can execute automatic compensation for spontaneous potential, drift and electrode polarization. By adopting large screen LCD display in Chinese characters, more than fourteen types of wiring working mode can be directly displayed in high-density measurement mode; in DZD-6A stand-alone mode, nine types of electrode arranging methods can be directly displayed; meanwhile, real-time curve display can be realized during working.
• Extra-large Storage: In high-density mode, the instrument can store the measured data at 120,000 measuring points; in DZD-6A stand-alone mode, the instrument can store the measured data at 4,800 measuring points; there are 22 digits at each measuring points, provided with RS-232 serial interface, and the stored data can be directly transferred to the computer by means of appropriate software to carry out digital interpretation for various methods.

Technical Specifications

Measuring unit ( DZD-6A)

• Maximum Measuring Voltage: -6000mV~+6000mV
• Measuring Voltage Resolution: 0.01 mV
• Measuring Voltage Accuracy: (at Vp>10mV)±5%, ±1 digit; (at Vp<10mV)±1%, ±1 digit
• Suppression on 50Hz Power Frequency: 80dB
• Measuring Current: 0~5000 mA
• Measuring Current Resolution: 0.01 mA
• Measuring Current Accuracy: (at Ip>10mA)±5%, ±1 digit; (at Ip<10mA) ±1% ±Letter
• Input Impedance ≥50 MΩ
• Measured Apparent Polarizability Accuracy: ±1%, ±1 digit
• Maximum Power Supply Voltage 900V
• Maximum Power Supply Current: 5A
• Power Supply Pulse Width: 1~60 sec.
• Weight: 8 kg
• Volume: 305×200×202mm

DUK-2A Multiplex Electrode Converter

• Conversion Electrodes: 60 channels or 120 channels
• Sopported manual configuration: Wenner, Schlumberger 1, Schlumberger 2, Dipole-Dipole, Combined Profiles, Differential, Pole-Pole, Triple-Pole Rolling,
• Operating Mode: 16-key keypad with 90 character LCD display combines to form man-machine dialogue operation.
• Maximum Allowable Current: 2A
• Maximum Withstand Voltage: 500V DC
• Insulating Property: 500MΩ
• Electroshock Break-over Resistance: smaller than 0.1Ω
• Power Consumption: 50 mA (Standby)
• Power Supply: 1# Dry Cell (or rechargeable battery with the same specification) 8 pcs.
• Working Temperature: -10°C~ +50°C, 95%Rh
• Weight: 7 kg (60 channels), 7.5kg (120 channels)
• Volume: 305×200×202mm (60 channels), 324×200×245mm (120 channels

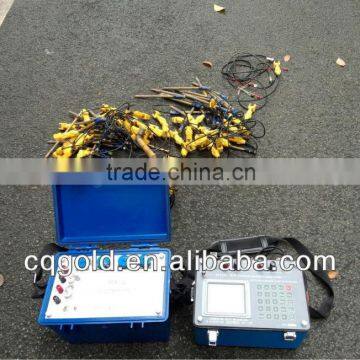

3. Products Showcase
