Geothermal Well Drilling Rigs, Water Well Drilling Well and Coring Machine
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Hard Rock Borehole Drilling, Max 600M Water Well Drilling Rig China
-
Diamond Drilling Water Boring Machine for Sale in Kenya
-
large diameter pile hole drilling rig geophysical equipments
-
large diameter pile hole drilling rig geophysical exploration equipment
-
Portable Rotary Drilling Rig, Rotary Drilling Equipment
-
ground hole drilling machines, Spindle Core Drilling Machine , geological exploration equipment 1000m depth
Product Details
Condition | New | Type | Other, Coring Machine | |
Power Type | Diesel | Place of Origin | Chongqing, China | |
Brand Name | Gold | Model Number | HZ-130YY Water Well Drilling Well | |
Usage | Other, Geothermal Well Drilling Rigs | Voltage | 380V | |
Power(W) | 15 Kw | Dimension(L*W*H) | 2500 * 900 * 1300 mm | |
Weight | 560 Kg | Certification | CE ISO SGS | |
Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

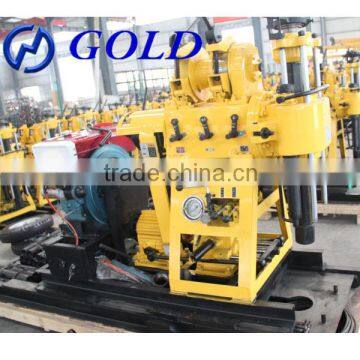

Geothermal Well Drilling Rigs, Water Well Drilling Well and Coring Machine
HZ-130YY Geothermal Well Drilling Rigs is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc.
Drilling depth | 130m | |
Maximum open hole caliber | 260mm | |
End hole caliber | 75mm | |
Drill rod caliber | 50mm | |
Drilling angle | 90~75 | |
Drill weight (No include power) | 510 560kg | |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m | |
Spindle | ||
Spindle speed | 142,285,570r/min | |
Spindle stroke | 450mm | |
Hoist | ||
Max.single line hoisting capacity | 960kg | |
Single line lifting speed | 0.41,0.82,1.64m/s | |
Tightrope caliber | 27m | |
Mud pump | ||
Type | Horizontal single urn twin-action | |
Displacement | 95/77L/min | |
Diesle engine | S1105model 18HP | |
Electric motor | Y160M—4 11kw 1440r/min | |
Maximum pressure | 1.2Mpa | |
Work pressure | 0.7Mpa | |
Water inlet caliber | 30mm | |
Water to exit caliber | 25mm | |
Triangle conveyer belt | B1575mm |
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Water Well Drilling Well exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. is the professional manufacturer in Geophysical instruments. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. We won high reputation from our customers mainly from Southeast Asia, Africa, Middle East, also including customers from Canada and some western countries like Germany, France. We do not just do trade business like doing Coring Machine, but doing the business for providing better Customer Experience! Sincerely welcome your inquiries!
