Product Details
Condition | New | Type | Other, Machine Manufacturers | |
Power Type | Diesel | Place of Origin | Chongqing, China | |
Brand Name | Gold | Model Number | HZ-200YY Hole Drilling Machine | |
Usage | Other, Drilling Water Well Cost | Voltage | 380V | |
Power(W) | 15 KW | Dimension(L*W*H) | 2750*1000*1850 mm | |
Weight | 975 KG | Certification | CE ISO SGS | |
Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

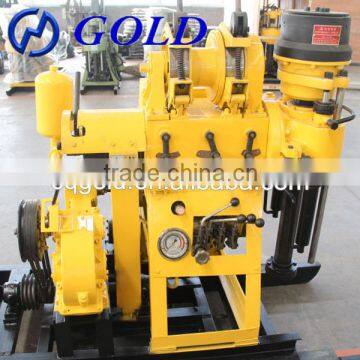

Big Sales!!! Hole Drilling Water Well Cost
Machine Manufacturers
HZ-200YY Drilling Water Well Cost is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc.
Drilling depth | 200m |
Max open hole caliber | 300mm |
End hole caliber | 75mm |
Drill rod caliber | 60mm |
Drilling angle | 90°~75° |
Drill weight (without power) | 975kg |
Triangle conveyer belt | B950 x 4 B1700 x 3 |
The main machine moving distance | 300mm |
Power | Diesel engine 22HP Electric motor 15kw |
Spindle | |
Spindle speed | 64, 128, 287, 557r/min |
Spindle stroke | 450mm |
Hoist | |
Max.lifting capacity | 2400kg |
Single line lifting speed | 0.41, 0.82, 1.64m/s |
Wirerope caliber | 13mm |
Wirerope length | 35m |
Reel diameter | 140mm |
Hug floodgate caliber | 260mm |
Hug folldgate belt width | 70mm |
Mud pump | |
Type | Horizontal single-urn twin-action |
Displacement | Diesel engine 170L/min Electric motor 150L/min |
Maximum pressure | 3Mpa |
Work pressure | 1.5Mpa |
Inlet pipe caliber | 40mm |
Outlet pipe caliber | 30mm |
Triangle conveyer belt | B1728mm |
Hydralic oil pump | |
Type | CBT-F-314 |
Triangle conveyer belt | B1100 X 1 |
1. Inudustrial professional export packing, full inspection on all packing details.
2. Standard wooden case for Hole Drilling Machine exporting and shock absorbing for better outerior protection.
3. Considerate interior plastic sheeting protection to prevent from wet and moisture.
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd. is the professional manufacturer in Geophysical instruments. Over 15 years experience engineers, and well-trained technicians, workers work together to back up our production line. We supply professional Drilling rigs with high quality and competitive price, such as: Core/Rock Drilling, Sample Drilling, Water Well Drilling, Down the hole Drilling, Truck, Crawler, Trailer, Tricycle mounted Drilling. We won high reputation by our customers mainly from Southeast Asia, Africa, Middle East, also including customers from Canada and some western countries like Germany, France. We do not just do trade business like doing Machine Manufacturers, but doing the business for providing better Customer Experience! Sincerely welcome your inquiries!
