Product Details
| Brand Name | Gold | Model Number | MGG-50 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

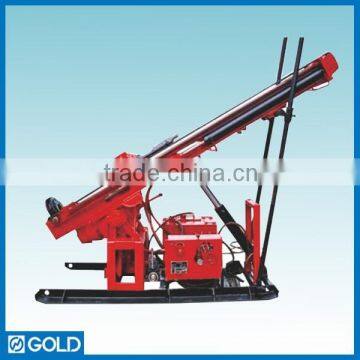

Hydraulic construction anchoring & Jet-grouting drilling machine
Drilling hole diameter(mm) | 110-180 | Drilling depth (m) | 60-30 | |||
Drilling angle range | Electric motor: 0-180° ; Diesel engine:0-90° | |||||
Power head revolving speed | Power type | Electric motor | Diesel engine | |||
Low speed | forward | 32;59;108;187 | 40;74;135;233 | |||
reverse | 26 | 32 | ||||
High speed | forward | 59;110;200;343 | 74;138;250;429 | |||
reverse | 48 | 60 | ||||
Power head maximum torque (Nm) | 2800 | |||||
Power head travel distance (mm) | Normal mast: 2300 (single rod length 2000) | |||||
Short mast: 1500 (single rod length 1200) | ||||||
Extra-short mast: 1200 (single rod length 800) | ||||||
Pull force (kn) | 22; 14.6 at elevation 90°~180° | |||||
Push force (kn) | 14.6; 22 at elevation 90°~180° | |||||
Hoist speed (m/s) | 0.259; 0.393 at elevation 90°~180° | |||||
Oil pump | CBK1020/8 twin-gear oil pump | |||||
Power unit | Electric motor Y160M-4; Diesel engine S1100, 11kw (Anchoring drilling) | |||||
Electric motor Y160L-6 (Jet grouting) | ||||||
Overall dimensions (L*W*H) | Model | Packing dimensions (mm) | Weight (kg) | |||
Normal mast | 3525*1000*1225 | 850 | ||||
Short mast | 2725*1000*1225 | 780 | ||||
Extra short mast | 2425*1000*1225 | 720 | ||||
Hydraulic construction anchoring & Jet-grouting drilling machine is idely used in soil and rock anchoring, high pressure jet grouting; consolidating and strengthening for highway, dam as well as retaining wall, soil and rock collapse precaution, deep foundation pit supporting and timbering for underground construction, skyscraper foundation drilling.
1. Top head drive drill, mechanical transmission, hydraulic feed and hoisting.
2. 180° electric drilling angle range at vertical plane.
3. The drilling rig feeding travel reaches 2300mm, shorter travel 1500mm/1200mm for short mast model and extra-short mast model also can be provided according to your drilling demands.
4. Suitable for confined space construction, using percussive rotary drilling (down-hole hammer drilling) as the main drilling method.
5. Power head controls the mast lifting, simple structure provides safety and reliability.
6. The drilling rig base frame can equip with sleighs/wheels if you need.
Model | Packing dimensions (mm) | Weight (kg) |
Normal mast | 3525*1000*1225 | 850 |
Short mast | 2725*1000*1225 | 780 |
Extra short mast | 2425*1000*1225 | 720 |
Professional Mechanical & Electrical Equipment manufacturer in China.
With high quality products, competitive price and professional services.
Our products include:
1)Geological Exploration Instruments
2)Seismic Instruments
3)Drilling Machine
4)Well Logging System
5)Element Analysis Instruments
Hope there will be a chance for us to have a cooperation with each other, I believe our professional products and services will make you satisfied and bring mutual benefits to both sides of us.
More detailed informtion you can visit:
