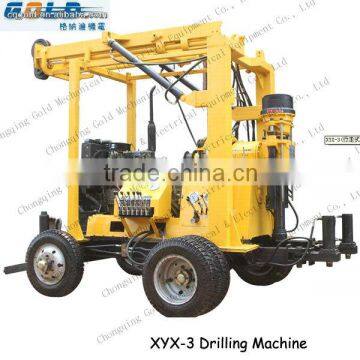

100m,250m,600m Ground Water Well Drilling Machine for Sale

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Main Features:

1. The machine is equipped with crawler chassis device, easy to move and speed

fast, the crawler chassis' Material system is very resistent steel mill.

2. Hydraulic oil pressure feed device , improve drilling efficiency.

3. Hydraulic chuck, can complete no-- stopping rotating.

4. Pressure gauge display the condition of bottom drilling hole.

5. Drilling mast controlled by hydraulic cylinder.Improve the efficiency.

6. Diesel engine adopt the electric starter , to reduce the labor intensity.

Technical Specification:

Drilling depth	m		100				250	300		600
Drilling DI	mm		300				200	150		75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed					r/min				30-1050
Spindle reverse speed					r/min				29-137
Spindle stroke					mm				560
Spindle inner diameter					mm				96
Spindle lifting capacity					KN				60
Main Winch ( drive hydraulic system)
Single line lifting speed						m/min			0-45
Hug floodgate belt width						mm			90
Tightrope diameter						mm			14
Hoist single line lifting capacity						KN			40
Roller diameter						mm			200
Roller cubic measure						m			30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement				L/min					250
Work pressure				Mpa					7
Water inlet caliber				mm					75
Water to exit caliber				mm					50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure									63mL/r 20Mpa
Behind displacement,pressure									25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp							4100# 40HP
Electric motor		KW							Y180L-4 22KW
