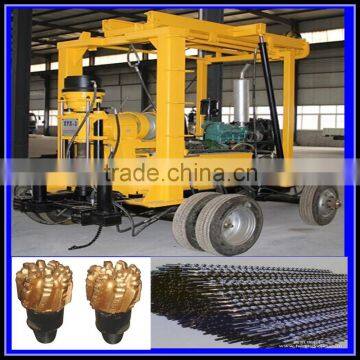

Portable Drilling Rig and Water Well Drilling Machine for Mining and Core Drilling Rig

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Place of Origin	Chongqing, China
Brand Name	Gold	Model Number	XYX-3
Usage	Other, water well, Core sample	Voltage	40HP
Power(W)	38KW	Weight	1600kg
Certification	ISO9001	Warranty	1year
After-sales Service Provided	Engineers available to service machinery overseas

Portable Drilling Rig and Water Well Drilling Machine for Mining and Core Drilling Rig

Features

1. The machine is equipped with crawler chassis device, easy to move and speed fast, the crawler chassis' Material system is

very resistent steel mill.

2. Hydraulic oil pressure feed device , improve drilling efficiency.

3. Hydraulic chuck, can complete no-- stopping rotating.

4. Pressure gauge display the condition of bottom drilling hole.

5. Drilling mast controlled by hydraulic cylinder.Improve the efficiency.

6. Diesel engine adopt the electric starter , to reduce the labor intensity.

Specifications

Drilling depth	m		100				250	300		600
Drilling DI	mm		300				200	150		75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed					r/min				30-1050
Spindle reverse speed					r/min				29-137
Spindle stroke					mm				560
Spindle inner diameter					mm				96
Spindle lifting capacity					KN				60
Main Winch ( drive hydraulic system)
Single line lifting speed						m/min			0-45
Hug floodgate belt width						mm			90
Tightrope diameter						mm			14
Hoist single line lifting capacity						KN			40
Roller diameter						mm			200
Roller cubic measure						m			30
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement				L/min					250
Work pressure				Mpa					7
Water inlet caliber				mm					75
Water to exit caliber				mm					50
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure									63mL/r 20Mpa
Behind displacement,pressure									25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp							4100# 40HP
Electric motor		KW							Y180L-4 22KW
