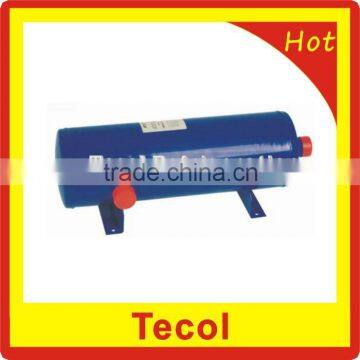

CE Certified Suction Filter Accumulator
- FOB NINGBO or SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Tecol | |
| Model Number | FTFQ-12.6 | Type | Heat Exchanger Tube | |
| Application | Refrigeration Parts | Certification | CE |
Product Description
Specifications
1. CE approved.2. low cost
3. Corrosion resistance painting.
4. Max working pressure: 3.2mpa.
Description
Suction Filter Accumulator offers a high level of contaminant removal from A/C and refrigeration systems. It was designed to remove the solid particles from the refrigerant and protect the compressor from liquid slugging.
Features:
1.Combine the Suction Accumulator and filter into one shell.
2.Space saving, low cost and nice appearance.
3.Enhance the separation performance.
4.Protect the compressors from liquid impact.
5.Max working pressure: 3.2mpa.
| Part No. | Connections | A(in) | B(in) | C(in) |
| ODF(inch) | ||||
| FTFQ-12.6 | 3/4" | 2.75 | 12 | 4 |
| FTFQ-13-7 | 7/8" | 2.75 | 13 | 5 |
| FTFQ-14-7 | 7/8" | 3.2 | 14 | 6.5 |
| FTFQ-17-9 | 1-1/8" | 4 | 17 | 6.5 |
| FTFQ-23-11 | 1-3/8" | 4 | 23 | 6.5 |
| FTFQ-25-13 | 1-5/8" | 4 | 25 | 6.5 |
| FTFQ-31-17 | 2-1/8" | 6 | 31 | 8.66 |
