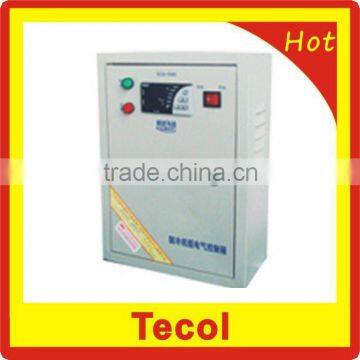

Refrigeration Electric Cabinet ECB-5060
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
Cold storage electric control box ECB-5080
-
Cold storage electrical control box ECB-1020
-
Refrigeration Electric Control Box ECB-30
-
MAC series air cooled evaporator (air coolers) for refrigeration cold room
-
Dual discharge industrial evaporator for supermarket
-
Tecol Long distance air cooled evaporator (cold room equipment)
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Tecol | |
| Model Number | Tecol |
Product Description
Specifications
1. Measure & control temp range:-50~50celsius2. Double screen
3. Double sensors
4. Control compressor & defroster
Brief introduction
1. Measure & control temp range:-50~50celsius
2. Double screen
3. Double sensors
4. Control compressor & defroster
5. Auto or Manual control
Functions and features:
ECB-5060 is specially designed for refrigerating unit. Double-screen display with both the current temperature and setting temperature; measuring temperature by double sensors; manage and control compressor and defroster separately ; Auto and manual control optional; Defrosting over temperature protection; Crank heating; when Sensor error, compressor turns on/off with proportional time; easy operation and visual display, stable and reliable performance.
Specification:
Product size: 300X400X150mm
Technical parameters:
1. Power supply: Three-phase five-wire (or three-phase four-wire), 380 VAC ±10%, 50Hz
2. Temperature measuring and controlling range: -50~+50oC,
3. Accuracy: ±1oC,
4. Resolution: 0.1
5. Compressor start-up delay protection time: 0~120 minutes (Adjustable)
6. Max. capacity of controlling the compressor (KW): 11
7. Max. capacity of controlling the defroster (KW): 11
