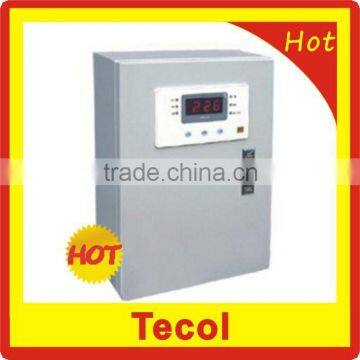

Condensing Unit Electric Control Box ECB-100

Specifications

Brief introduction

1. Protection functions

2. Easy-to-operate

3. Auto and manual switch function

General descriptions:
ECB-100 is an Electric Control Box with complete protection functions, easy to set the parameters and operate. Auto and manual switch functions selected. When manually operate, it can realize the single-phase load control of fan, compressor and defroster.

Functions and features:
1. Modify the parameters even when the system is running
2. Manual/Auto switch functions, when manually operate, can control the load of Fan,

3. Compressor and defroster separately
4. Compressor start-up delay
5. Fan start-up delay
6. Auto-defrost and enforced defrost
7. Acousto-optic alarm when pressureoverload and phase lacking error
8. Pressureoverload and phase lacking protection function
9. Main heavy current controllers are domestic famous brands with high reliability
10. Good water-proof ability

Specification:
Product size: 300X420X150mm

Technical parameters:
1. Temperature measuring and controlling range: -40 ~+50^oC
2. Accuracy: ±1^oC
3. Resolution: 0.1
4. Defrosting cycle: 0~99 hours
5. Defrosting time: 0~99 minutes
6. Sensor temperature calibration:±5^oC
7. Control Ways: 3 ways (for control of Compressor, Fan and Defroster)
8. Input Way: 4 ways (1 way for temp. measuring others for error monitoring)
