Speed Stable Automatic CIP Cleaning System/CIP Washing System/Fresh Milk CIP System (clean in Place)

Manufactory High Speed and Best Price Automatic CIP Washing System with CE SCG and ISO

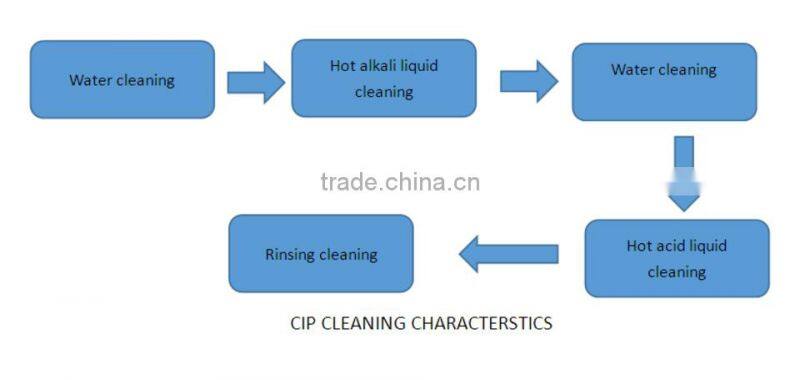

A, washing:

When the material is about, that is washed with water to eliminate the residual material, and more conducive to the next step of the cleaning liquid water, when the water flows out of the device to clear, wash stop.

B, caustic:

In the sump in caustic soda (sodium hydroxide NaOH) formulated as a 2% concentration of the alkaline washing solution, heated to 80 deg.] C, for about 30 minutes cycle. Lye dissolves proteins, milk fat and loose foam fouling. Such as fouling is severe, it may be appropriate to increase the concentration of the solution.

C, washed with water:

Rinsed with water for about 15 minutes after the exclusion of lye.

D, pickling:

The nitric acid (HNO3) formulated in a concentration of 2% acidic detergent was heated to 80 ℃, circulation for about 30 minutes.

E, washing:

Rinsed with water for about 15 minutes after the exclusion of the acid, acid residues contaminated material when prevent reproduction.

Washing completed, should be filled with water, to prepare for the next operation.

CIP CLEANING CHARACTERSTICS

1.Before cleaning process, Setting target subject & checking, to avoid mistake of choosing

2.CIP Liquid store TANK automatic Liquid-level inspection and complementarily

3.Acidity Liquid, Lye automatic adding inspection

4.Heat up temperature and circumfluence temperature controller

5.All of automatic valve and pump start and stop controller

6.Running statues display

7.Failure automatic pause and warning

Product Description

CIP(Cleaning In Place) System is designated for in-place sanitation and washing of pasteurizers , heat exchangers , pipes , filling blocks and buffer vessels. CIP system provides highly efficient washing of equipment and pipelines to guarantee a required level of microbiological purity. Widely used in beer, wine, milk, beverage, chemical industries.

Advantages

1. Full Automatic and customized to specific needs

2. Optimized consumption of water, energy and detergents

3. Efficient detergents recovery

4. Efficient cleaning in short time

5. Multi-CIP cleaning programs

6. Control system: PLC & HMI

7. User friendly

8. Easy to maintenance

Professional And Careful Design

Auto-CAD  Design Details Of The Plan

certification
