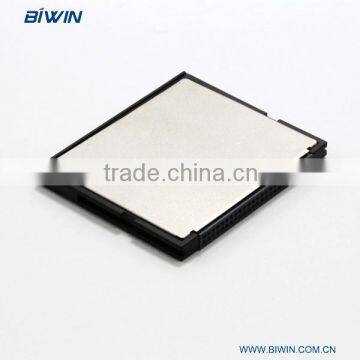

50PIN connector 32gb cf card for cameras and embedded solutions

Brand Name	BIWIN		Model Number	F6116
Type	CF Card		Capacity	32GB
Place of Origin	Guangdong, China

Specifications

50PIN connector 32gb cf card for cameras and embedded solutions
1. MLC nand flash
2. high-cost performance
3.3-year warranty



      BIWIN  Storage Technology Limited



                                                  We look foward to doing  win-win business with your side



 50PIN connector 32gb cf card for cameras and embedded solutions



1. SMI  Controller + MLC Toggle 19nm flash, 50PIN

we own independent WAFER cutting, packaging and testing factory

which is the 1st one in South of China.

2. Compliant with compact flash specification 6.0

3. Excellent compatibility, no mobile components

zero mechanical interference

4.  Long lifespan, low consumption

5. 3-year warranty



Parameters quick view

Commodity	50PIN connector 32gb cf card for cameras and embedded solutions
Model Name	F6116
Interface	50PIN ATA
Connector	50PIN female
Controller	SMI brand
Flash	MLC 19nm
Compacity	32GB (4,8,16,64GB available)
Transfer Mode	600X (150X,300X,1000X available)
Sequential Transfer Performance (Varies by compacity)	Read: 111MB/S Write: 45MB/S
ECC	BCH ECC 72bits/1KB
Operation Voltage	+5.0V(+5%)
Power Consumption (Varies by compacity)	Read:0.55W Write:0.75W Idle:0..03W Sleep:0.03W
Operating Temperature	0-70 °C
Storage Temperature	-40-85°C
Humidity	5%-95%
MTBF	2,000,000Hrs
Shock	100(G),6(ms),half-sine wave
Vibration	10-500Hz at 4G
Dimmesion(mm)	36.40x42.80x3.30
Weight(g)	<=10g



Display

Measurement Unit:mm





Applications

1. Single-lens reflex cameras

2. Embedded systems

3. Other stroage application as long as the interface is 50PIN connector

About BIWIN

     Founded as an electronic product manufacturer in Shenzhen, China ,1995, BIWIN specializes in producing FLASH storage products, including Solid State Drive, Compact Flash cards and Embedded  Chips.

    We own 19-year storage industry expertise, providing customized Solution Designing, and cutting-edge equipments, capable of independent Wafer packaging and testing, IC  Testing, SMT and Assembling , final Product Testing etc.  Manufacturing is conducted according to strict quality standards to ensure consistently high quality products.





Why BIWIN?



Full range of high-quality products

we have nearly 20-year expertise and experience in storage

State-of-the-art manufacturing

Strict test and QC in every step of production

Wafer packaging service available, providing customized solutions

Professional and united stuff support

Prompt and satisfactory after-sale service and technical support



Reliable production



Professional know-how team



State-of-the-art manufacturing



Final product test(test report of each main product available)



Certificates



Payment&Shipping

1. We generally accept T/T, paypal.
2. Full payment/downpayment must be made within 7days after placing order
or the order will be invalid or cancelled by the system.
3. DHL, UPS, Fedex, EMS, TNT, HK post air mail, HK post air parcel available
4. For sample order, 3-5business days after confirmation of full payment
   For bulk order, 8-15business days after confirmation of full payment or downpayment.



Returns&Warranty



Warranty scope:
1. The defects caused by manufacturing or materials.
2. Warranty  is within 36 months after shipment.

Non-warranty scope:
1.Products are not sold by Biwin.
2.The defects are beyond the Warranty Period.
3.The products have been changed by the third party, which is not authorized by Biwin.
4.The defects are caused by the improper operation.
5.The defects are caused by the accident such as dropping into water and so on.
6.The defects are caused by other conditions, which are not due to the fault of Biwin.

RMA procedures:
1. Make sure the goods are in the above warranty scope, and within warranty
2. Transfer all your data to other storage devices
3. Tell the defective product details to Biwin sales representative
4. After-sale representative’s confirmation, you will receive an RMA sheet with RMA number.
5. Return goods to Biwin.
