Pull Type Tension Load Cell
- Ningbo or Shanghai
You May Like
-
Tension Load Cells / Load Link for Crane Scale
-
Electronic Load Cell for Scale
-
Special For Crane Scale Tension Load Cell
-
Digital S-type Load Cell
-
With High Precision Forged Alloy Master Link Assembly
-
Durable Wired Truck Scale Weighing Indicator/Digtal Weigh Scale Indicator /Big Size Display Weighing Indicator A9
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | GS225-M2 | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Other, Analog sensor/Digital sensor |
Product Description

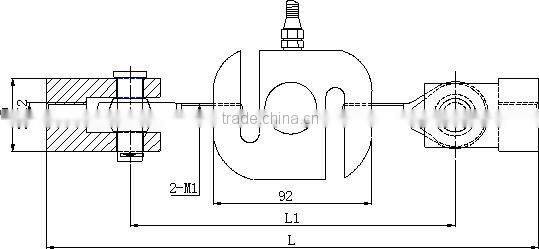

Unit: mm
Cap./Size | Lmax | L1max | M1 | M2 | D |
0.5~3t | 256 | 152 | M12 | M12 | Φ35 |
4t | 318 | 196 | M20 | M24 | Φ72 |
5~7.5t | 372 | 232 | M20 | M24 | Φ72 |
Product Characteristics:
GS225-M2 Load cell are available in the capacities 0.5t~7.5t. They offer alloy steel or total stainless steel construction, complete hermetic sealing, oil proof, water proof and anti-corrosion making them suitable for use in all kinds of environments. S beam design, tension and or compression loading possible, easy installation and flexible application. It is suitable for hanging scales, mechanical scales, hopper scales and other electronic weighing devices. It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
Technical Parameter:
Rated Load: | 0.5/1/2/3/4/5/6/7.5t |
Sensitivity: | (2.0±0.1%) m V/V |
Combined Error: | ±0.02% F.S |
Creep Error30min: | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10 |
Temp. Effect On Span: | ±0.02% F.S/10 |
Input Resistance: | 385±5Ω |
Output Resistance: | 352±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range: | -30~+70oC |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 300%F.S |
Recommend Excitation: | 10~12V DC |
Maximum Excitation: | 15V DC |
Sealing Class: | IP67/IP68 |
Element Material: | Alloy Steel, Stainless Steel |
Cable: | Length=L:3m(0.5t) ; 5m(1~7.5t) |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
