Digital Force Sensor
- Ningbo or Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | GS341 | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Other, Analog sensor/Digital sensor |
Product Description

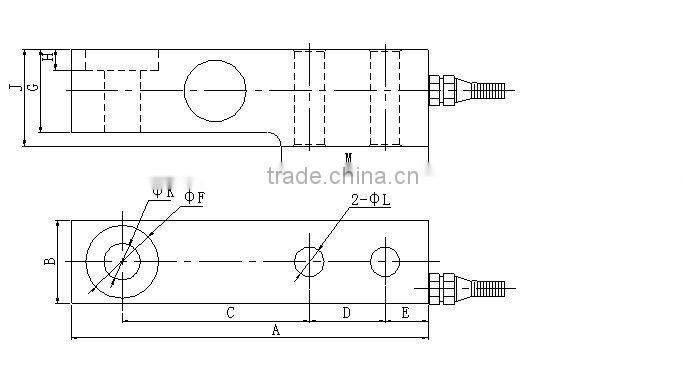

Unit: mm
Cap./Size | A | B | C | D | E | F | G | H | J | K | L | M |
0.5/1/2t | 203.2 | 36.5 | 98.4 | 63.5 | 19.1 | 30.2 | 36.5 | 11.9 | 47.6 | 17.5 | 14 | 101.6 |
5t | 235 | 47.5 | 123.8 | 66.7 | 20.6 | 41.3 | 47.6 | 15.8 | 69.9 | 25.5 | 22 | 111.2 |
Product Characteristics:
Shear beam load cells GS341 is a stainless steel single ended shear beam type load cell. We can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. This robust product is suitable for a wide range of platform scales, pallet scales, overhead track scales,Belt scales,On-board weighing,Silo hopper weighing and process weighing applications. The fully welded construction and water block cable entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries. This product meets the stringent Weights and Measures requirements throughout worldwide.
Technical Parameter:
Rated Load: | 0.5/1/2/5t |
Sensitivity: | (2.0±0.1%) mV/V |
Combined Error: | ±0.02% F.S |
Creep Error(30min): | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10°C |
Temp. Effect On Span: | ±0.02% F.S/10°C |
Input Resistance: | 385±5Ω |
Output Resistance: | 351±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range: | -30~+70°C |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 250%F.S |
Recommend Excitation Vol.: | 10~12V DC |
Maximum Excitation Vol.: | 15V DC |
Sealing Class: | IP67/IP68 |
Element Material: | Alloy Steel, Stainless Steel |
Cable: | Length=L:3m(0.5~2t),5t(6m) |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
