Home > Products > Single Point Load Cell > Low profile bending beam load cell

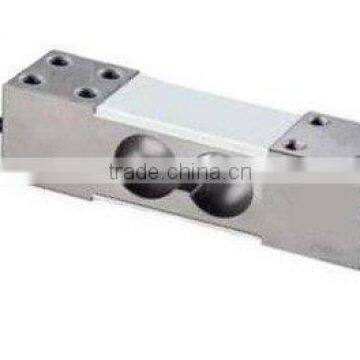

Low profile bending beam load cell
- 10000 Piece / Pieces per Month
- Ningbo or Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | GS350 | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Other, Analog sensor/Digital sensor |
Product Description
Product Characteristics:
Single point load cells GS350 is low based low profile bending beam load cell and is ideal for precision single point platform scale application. we can produce with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells. It is designed for eccentric load sensitivity. It application in medium size platform scales, bag weighing, hopper weigher, weighing bench scale, mechanical bench scales, waterproof scale, washdown bench scale ,body scales, digital platform balances, digital weight balance,digital scale balance.
Technical parameter:
Rated Load: | 50~500kg |
Sensitivity: | (2.0±0.1%) m V/V |
Combined Error: | ±0.05% F.S |
Creep Error(30min): | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Tco: | ±0.02% F.S/10°C |
Tc Span: | ±0.02% F.S/10°C |
Input Resistance: | 385±5Ω |
Output Resistance: | 351±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range | -30~+70°C |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 300%F.S |
Recommend Excitation Vol.: | 10~12V DC |
Maximum Excitation Vol.: | 15V DC |
Sealing Class: | IP65 |
Element Material: | Alloy Steel, Stainless Steel |
Cable: | Length=L:3m |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
