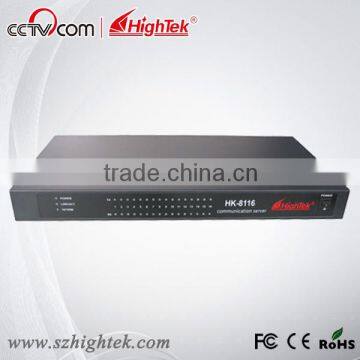

tcpip ethernet to 16-port multiport RS232 serial converters

Specifications

tcpip ethernet to 16-port multiport RS232 serial converters details:

Features:

1.16-port rs232 serial db9 pin port to 1-port ethernet RJ45 port;

2. CPU:32 bit Hyperstone MCU(German chip); 1U 19" standard rack-mounted;
3. Provide a wealth of operating modes to let serial device networking immediately;
4. Supports Real Com / TTY driver, completely compatible with original software system;
5. TCP Server, TCP Client and UDP Universal transparent mode;
6. Supports serial servers directly connecting mode and the reverse terminal mode;
7. Supports manage and configurate by Web browser or Telnet terminal;
8. 10/100M adaptive Ethernet interface;
9. Built-in 15KV ESD surge protection;
10. Maximum serial communication rate up to 460.8Kbps.

11. RJ45/25 Stylus, RS232 male connector plug,DTE style

12. Support for multiple hosts to share with equipment

13. Drive the COM port under the Windows 7/NT/2000/XP platform

14. Fixed TTY Driver under the SCO Unix platform

15. Fixed TTY Driver under the SCO Unix platform

16. PPP dial-up connection authentication (PAP/CHAP/RADIUS)

17. Simple-to-use management program under the Windows platform

18. Provide security mechanisms of network access (IP / MAC)

19. Offer all the C source code to visit IP under the Socket platform to visit IP and use IP serial ports under any OS supporting TCP/IP

Specifications:

CPU: 32 bit 100MHz

Memory:8 MB

Ethernet speed:10/100 Mbps, self setting,and support manually operation.

Communication mode:10M-semiduplex and 10-full duplex, 100M-semiduplex and 100M-full duplex

Interface protection:15KV electromagnetic isolation

Serial port: 16 RS-232

Ports connection type: Ethernet port:RJ45;

                                            RS232 port:RJ45 (single serial ports are DB9 pin)

Signal: RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

The data bit of the communication parameter in the serial ports: 5, 6, 7, 8

Examination: None, Even, Odd, Space, Mark

Stop bit: 1, 1.5, 2

Flow control: RTS/CTS, XON/XOFF

Speed: 300 bps to 460800 bps

Protocol: DHCP, Telnet, TCP, UDP, IP, ICMP, ARP

Real Com Driver:Windows NT/2000/XP/7,

TTY Driver:SCO UNIX, Linux

Configuration: by the serialization of CONSOLE port in RS-232, Telnet

Indicator light: Power Indicator in serial ports (Power), Link Ethernet/transmit-receive light (Link/ Act), indicator light for the speed of Ethernet (100/10), receive (Rx), transmit (Tx)

Work Mode: Drive mode under Windows, log-in mode, Socket Mode,Serial ports-PPP Mode, LPD print mode

Software support: Configuration systems under the Windows NT/2000/XP/7/8 platform and COM Port Driver

                                   Configuration under the SCO Unix/LUNIX platform and tty Driver

                                   Explore C source program under the TCP/IP cross-platform

Power Input: 110~230V AC,9~48V DC

Operating Temperature: -10 to 70 °C

Operating Humidity: 5 to 95%

Store Temperature: -40 to 80 °C

Pin Define:
