Home > Products > packing line > Automatic Glass Jar Filling Machine for honey/ketchup/mash
Automatic Glass Jar Filling Machine for honey/ketchup/mash
- 30 Set / Sets per Month
- Shanghai seaport
- T/T
You May Like
-
automatic linear sunflower oil filling machine
-
Automatic 1-5L Oil Bottle Filling Machine Piston Filler
-
Newest design linear oil filling machine
-
Automatic PET Oil Bottle Filling Machine Manufacturer
-
Pneumatic Control Piston Filling Plant for Viscosity Oil Filling Machine
-
Automatic 8 Heads Soybean Oil Filling Machine Price
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical | |
| Packaging Type | Barrel, Bottles, Cans | Packaging Material | Glass, Metal, Plastic | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | AC380V 50/60HZ | Power | 2.5KW | |
| Place of Origin | Jiangsu, China | Brand Name | ZHONG TAI | |
| Model Number | ZSP-16A | Dimension(L*W*H) | 2400mm*1300mm*2150mm | |
| Weight | 1200KG | Certification | SGS CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic Glass Jar Filling Machine for honey/ketchup/mash
filling range : 1L-5L
filling heads : 6 or 8 can be choosed according to customers requirement
capacity : 600BPH for 5L at basic of 6 filling heads
800BPH for 5L at basic of 8 filling heads
suitable for oil liquid packing : vegetable oil ,lube oil ,edible oil ,sunflower oil and so on.....
why suitable :
1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts
2: no dropping ,inside the filling heads ,after filling make to be vaccum if not touch by hand on filling head will no drop ,second is there is device ,after filling ,device will do the collect under filling heads ,two ways to make sure no dropping .
3 :machine material ,the material we use ,all the contact part SS 316L ,make sure machines are working good
4: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.
5: accurate, every filling heads with one load cell to control the weight ,will not be influenced by the temputer ,keep the weight the same
suitable for the bottles photos :
Oil filling machine
Type: ZSP-16A ( With 16 filling heads )
This series fiiling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action. Use servo mtor control volume more accurate, and filling speed can variable, a slow speed can be applied when close the target filling volume to prevent liquid spill out.
bottle shape: round &flat bottles
filling range: 1000ml-5000ml
liquid: viscous liquid such as shampoo, dishwasher, oil, chemicals, detergent and so on ...
capacity :800-2000BPH
Machine Photos:

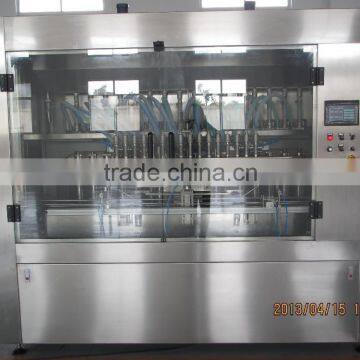

Filling machine:
capping machine:
Labeling machine:
Technological parameters
1 | Speed | 800-2000bottles/h |
2 | Filling range | 1000~5000ml |
3 | Measurement precision | ±1% |
4 | Working power | 220VAC |
5 | Air pressure | 6~7kg/cm² |
6 | Air consumpation | 1m³/min |
7 | Power rate | 0.8kw |
8 | Other devices power rate | 7.5kw(air compressor) |
9 | Net weight | 2520Kg |
10 | Counter size | 2400X1500X2500mm |
configuration
NO. | ITEM | SUPPLIER | Brand |
1 | Touch screen | Taiwan | WEINVEIW |
2 | PLC | Japan | Mitsubishi |
3 | Photo sensor for bottles | Japan | OPTEX |
4 | solenoid valve | Taiwan | SHAKO |
5 | Level button | Mexico | JOHNSON CONTROLS |
6 | angle seat Valve | Jointed | BURKERT |
7 | Diving cylinder | Taiwan | AIRTAC |
8 | Power button | France | Schneider |
9 | Button | France | Schneider |
10 | frequency converter | France | Schneider |
11 | Magnetic switch | Taiwan | AIRTAC |
12 | oil-water separator | Taiwan | SHAKO |
13 | Speed reducer | China | Jiao xing |
14 | Relay | Japan | Omron |
15 | Servo motor | Japan | Panasonic |
Packed wooden case ( no smoked, but suitable for long distance transports )
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that regulated in instruction manual.
Jiangsu ZhongTai Packing Machinery Co., Ltd
contact : Fiona Ding
Address: No.222, Nan Huan Erlu, Jintan City, Jiangsu P.R. China
Tel: +86 136 8527 0809
Fax: +86-519-82113618
P, C: 213200 .
