PVC Oil Containment Boom
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Huahai | |
| Model Number | oil boom014 |
Product Description
General infomation

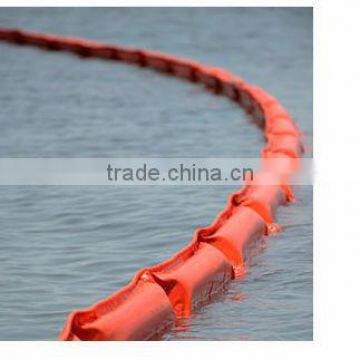

The solid float PVC boom is an economical, universal boom for intercepting oil spills and other floats on water surfaces. It is suitable for the permanent, stationary deployment on waters. Thanks to its fast deployment and easy operation, it is widely used on rivers, harbors, lakes, offshore oil platforms and other areas.
Features

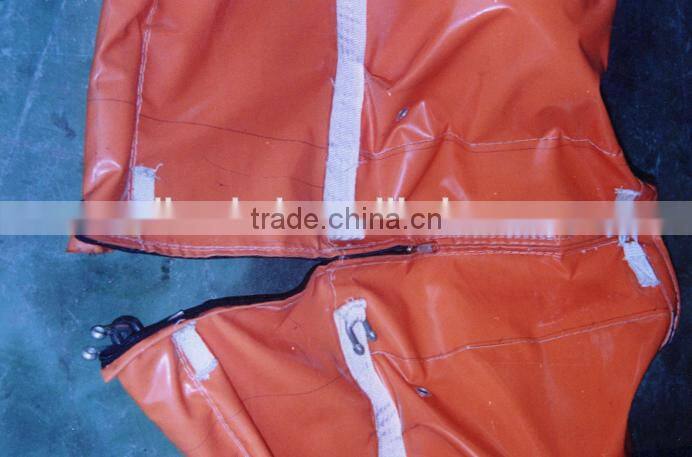

1. Made of the high strength fabric coated PVC on its two sides, having excellent resistance to oil and ageing.
2. The solid float has a large capacity of buoyancy and excellent wave riding and steadiness.

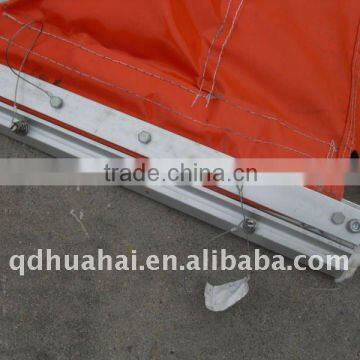

3. The boom body is provided with a pulling rope, a strengthening ribbon and tensile ballast chains serving as elements to withstand forces and has tensile strength.
Technical Data
Model Parameter | WGV600 | WGV700 | WGV750 | WGV800 | WGV900 | WGV1000 | WGV1100 |
Overall height(mm) | 600 | 700 | 750 | 800 | 900 | 1000 | 1100 |
Freeboard(mm) | 150 | 210 | 260 | 280 | 320 | 340 | 370 |
Draft(mm) | 380 | 390 | 400 | 420 | 490 | 540 | 560 |
Max, working tensile strength(mm) | 20 | 25 | 30 | 45 | 55 | 75 | 85 |
Length per section (m) | 20 | ||||||
Max, wave height to withstand(m) | 0.5 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2 |
Max, wind speed to withstand(m/s) | 8 | 10 | 10 | 15 | 15 | 18 | 20 |
Max, current speed to with stand(Kn) | 1 | 1 | 1.5 | 1.5 | 2 | 2.5 | 2.5 |
packing dimensions for 20m(m) | 1x1x0.6 | 1.2x1x1 | 1.2x1x1 | 1.3x1.1x1.1 | 1.4x1.5x1.2 | 1.4x1.6x1.3 | 1.4x1.7x1.4 |
"Satisfaction from customers is our persevering pursuit" is the tenet we have always been following. We warmly welcome friends from all circles to contact us for potential cooperation.
