Home > Products > OIL SPILL RESPONSE EQUPMENTS > Floating Oil Boom WGJ1000
Floating Oil Boom WGJ1000
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Huahai | |
| Model Number | WGJ800 |
Product Description

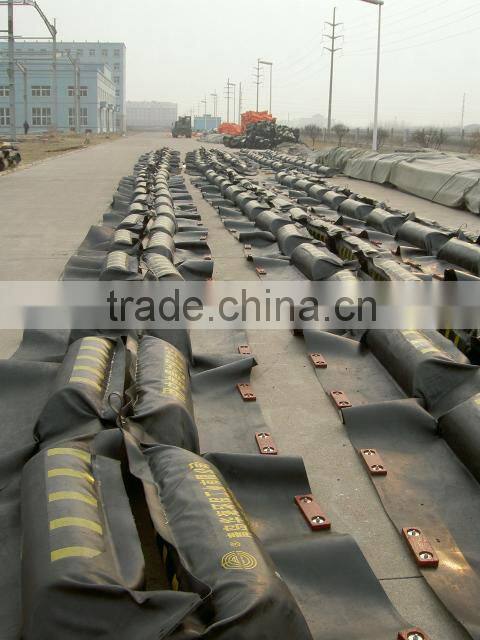

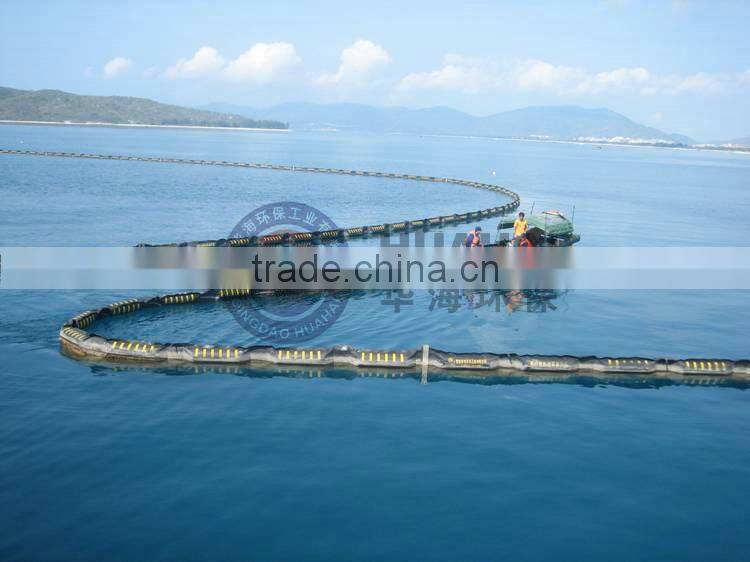

Solid float rubber boom is a special synthetic rubber membrane of boom which has high strength, oil-resistant, whether-resistant and anti-abrasive functions. It is the key important equipment necessary for controlling oil spills from spreading and shifting on ocean or other waters. It is suitable for permanent deployment on waters such as open seas, gulf, harbors, wharfs, rivers and offshore oil platforms, or for the use in operations in response to oil spills.
Features
- 1. Made of double-layer, high strength nylon canvas, with its outside covered with oil resistant, ageing resistant, high quality synthetic rubber
- 2. With strong resistance to stormy waves, large reserve for buoyancy, the boom body withstands uniform forces.
- 3. Solid float has high strength and steadiness
- 4. The tensile ballast chains and ballast pieces can be chosen by the user upon request
- 5. It’s optional with the luminous marking or covering the boom with rubber colors on its outside for easy identification
- 6. The flame retardant rubber boom is optional
- 7. The relevant accessories can be customized according to the customer’s requirements
Customers can choose different types for different needs, and we can supply customers with technical materials and special support .
TECHNICAL DATA OF FLOAT RUBBER BOOM
Model Parameter | WGJ600 | WGJ800 | WGJ1000 | WGJ1200 | WGJ1400 | WGJ1600 | WGJ1800 |
Overall height(mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 |
Freeboard(mm) | 210 | 280 | 340 | 400 | 460 | 520 | 590 |
Draft(mm) | 280 | 260 | 480 | 600 | 700 | 810 | 900 |
Max, working tensile strength(Kn) | 50 | 80 | 100 | 110 | 120 | 140 | 160 |
Standard length per section(m) | 20 | ||||||
Max, wave height to withstand(m) | 1.5 | 2 | 2 | 2.5 | 3 | 3 | 3.5 |
Max, wind speed to withstand(m/s) | 10 | 15 | 15 | 20 | 20 | 20 | 25 |
Max, current speed to with stand (Kn) | 1.5 | 2 | 2.5 | 3 | 3 | 3-4 | 3-4 |
Qingdao huahai environmental protection industry Co., Ltd is located in the center of haibin industrial zone in Qingdao, China, which covers a total land of 92,713 square meters and has about 30,000 square meter construction facilities and 500 employees, including 120 technical engineers.
In 1990, the company successfully developed series oil spill response equipments, including oil containment booms, oil skimmers etc. In 1994, it was renamed Qingdao Huahai Environmental Protection Industry Co., Ltd, which developed rubber dams in 1996 and took the lead in obtaining the ISO9002 Certificate in 1998. In 2000, Huahai introduced new equipments and advanced technology to improve productivity. In 2008, Huahai invested 3 million RMB in production of oil sorbent mats and took part in the operation to clean enteromorpha prolifera from the water area in Qingdao where the 29th Olympic Regatta and Beijing Paralympic Sailing Event were held.
Huahai owns entire production lines of rubber dam and oil spill response equipments, mainly including skimmers, oil booms, storage facilities, oil spill monitoring systems and oil spill recovery boats etc.Huahai has six branches currently and keeps the trend of group development under the circumstance of blue economy.
