Olive Care Hair Mask Filling Machine
- shanghai seaport
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical | |
| Packaging Type | Barrel, Bottles, Cans | Packaging Material | Glass, Metal, Plastic | |
| Automatic Grade | Automatic | Driven Type | Pneumatic | |
| Voltage | 380V 50HZ | Power | 2KW | |
| Place of Origin | Jiangsu, China | Brand Name | ZHONGTAI | |
| Model Number | ZSP-16A | Dimension(L*W*H) | 2400*1300*2150mm | |
| Weight | 1200KG | Certification | CE ISO SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
olive care hair mask filling machine
Main characteristics:
This machine adopts piston filling, it is suitable for viscous, low viscous and high viscous material at the same time.
The piston filling system of this machine could achieve bottle inlet counting, ration filling, bottle output etc automatically. It suits for high viscous material such as jam, wood floor wax care, engine oil, edible oil etc ration filling.
Technical parameter:
NO. | Items | Performance |
01 | Filling heads | 8 10 12 16 |
02 | Filling range | 50ml-1000ml (can be customized) |
03 | Diameter of bottle mouth | ≥Ø18mm ( can be customized) |
04 | Production capacity | 1000-6000bottles/hour (take 500ml foamy product as test) |
05 | Error range | time gravity filling error range: 1% |
Piston filling error range: ±3g | ||
06 | Power supply | AC380V; 50Hz |
07 | Machine dinmension | 2400mm(L) x 1200mm(W) x 2500mm(H) |
08 | Air consumption | 0.55-0.65 Mpa clean and stable compressed air |
Suitable products:
♦ Servo motor driving
♦ Control system - with PLC control system, filling dose is of random fine-tuning.
♦ Operation Interface - 6-inch color touch-style user interface, intuitive and simple, safe and reliable
♦ Feature Enhancements - Cutting with anti-drip device, it can dive to fill with functional properties of materials. (This feature can be optional)
♦ Electrical components - using internationally renowned brands to ensure that equipment’s reliability and high accuracy;
♦ Mechanical components - the contact parts are made of high quality stainless steel 316 and non-toxic corrosion and PTFE hoses. Other machine parts are made of high quality stainless steel 304.
♦ Count testing - real-time count, reflecting on the work output directly.
♦ Filling Detection - No bottle, or when bottles are not enough, no filling.
♦ Maintenance situations - the machine meets the GMP requirements, easy to disassemble, clean and maintain.
♦ Exchange standard – when changing filling specifications, you only need some simple adjusting to make it.
♦ Environmental protection configuration – the environmental framework in the machine makes operating environment more hygienic.
suitable for liquid :
hair conditioner ,shampoo ,handwasher ,liquid soap ,hair washer ,detergent ,dishwasher ,shower jel and so on ...
filling range: 100ml -1000ml
1-5L
bottle shape: round & flat
Capacity :
at basic of 1L ,there are different kinds of capacity of the machines
less than 2000BPH
less than 3000BPH
less than 5000BPH
parts of machines made :
Electrical parts machine use :
ZSP -16A configuration
No. | ITEM | SUPPLIER | Brand |
1 | Touch screen | Taiwan | WEINVEIW |
2 | PLC | Japan | Mitsubishi |
3 | Photo sensor for bottles | Japan | OPTEX |
4 | solenoid valve | Taiwan | SHAKO |
5 | Level button | Mexico | JOHNSON CONTROLS |
6 | angle seat Valve | Jointed | BURKERT |
7 | Diving cylinder | Taiwan | AIRTAC |
8 | Power button | France | Schneider |
9 | Button | France | Schneider |
10 | frequency converter | France | Schneider |
11 | Magnetic switch | Taiwan | AIRTAC |
12 | oil-water separator | Taiwan | SHAKO |
13 | Speed reducer | China | Jiao xing |
14 | Relay | Japan | Omron |
15 | Servo motor | Japan | Panasonic |

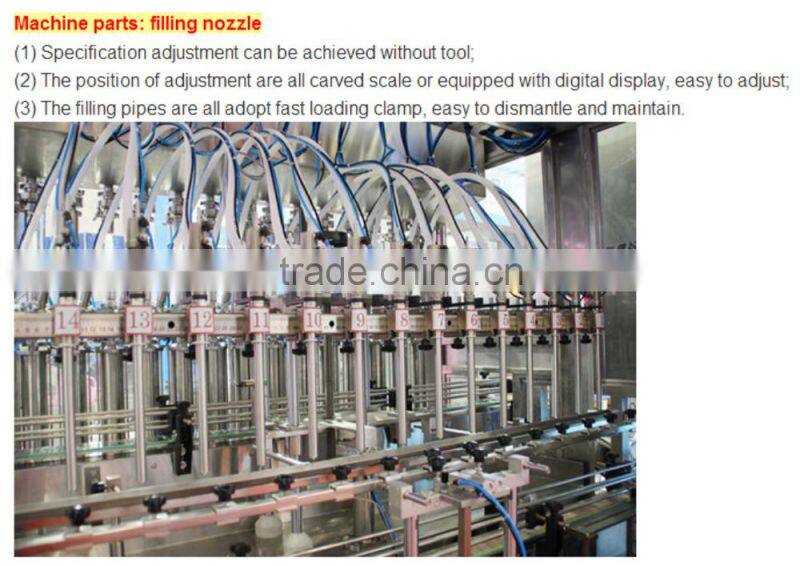

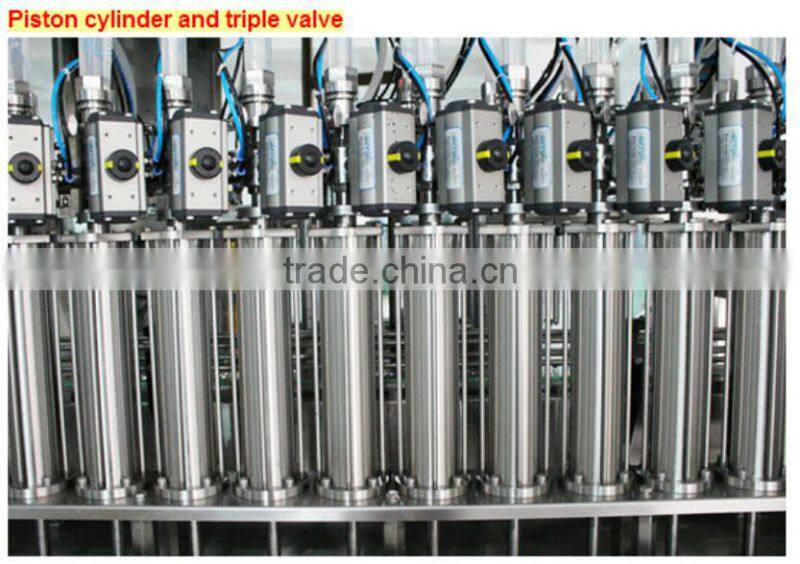

Some electrical parts photos:
packed wooden case (no smoked, but suitable for long distance transports.)
our package photos
1. Installation, training and start-up by Our Factory Service Engineer is available.
2. With ZHONGTAI’s service engineers, you can feel confident in our professional knowledge and years of experience. If you have any service request, spare parts ordering, or other questions, please contact us.
3. We always send our service engineers to customer's factory to install and adjust machine, at the same time our engineers will train the workers of client and teach them knowledge about management machine, if our engineers stay 7days, it’s free to charge salary. But if more 7 days, customer pays our engineers one people one day usd50/person.
4. The customer pays the travelling expenses, food, and accommodation. We welcome clients send their workers to our company study. It's free to study machine on our factory, Our Company is charged with the fee of food and accommodation. Our machines are very easy to operate and manage. Worker can operate and manage these machines after they study three days. The number of persons training is as customer requirement.
1. How does this machine control filling volume?
A: It controls filling volume by setting travel of piston for each valve. The volume= sectional area of quantitative cylinder X travel of piston.
2. Is there other filling capacity can be choosen?
A: Yes, the filling capacity is upto 5Litre. We can customize it for you according to your bottle size.
3. Our liquid has foam when fill, can you solve this problem for us.
A: Don't worry, this machine has dive filling function such nozzles can dive in to the bottle to fill. Also nozzles can rise while filling.
4. I know this machine can fill viscosty liquid, but can this machine fill liquid with good mobility also?
A: Yes, that's right.
5. Our country's voltage is different from China, can you supply machine with the power supply same as our country?
A: Sure, we can customize it for you.
6. We see model ZSP on your website, can you tell us the difference and the same places of them?
A: Sure. They are all positon type filling machines, but the filling volume differs. The quantitive cylinders are with 120ml, 500ml, 1000ml, 5000ml maximum volume. Clients can choose the model according to their fillling request.
The manufacturer shall supply qualified products, if some problem of quality found within one-year delivery. The manufacturer is responsible for repairing or replace defeats ones. This assurance does not including the quick-wear part and damage due to the improper operation that
regulated in instruction manual.
Jiangsu ZhongTai Packing Machinery Co., Ltd
contact : Fiona Ding
Address: No.222, Nan Huan Erlu, Jintan City, Jiangsu P.R. China
Tel: +86 136 8527 0809
Fax: +86-519-82113618
P, C: 213200
Website:
For more information, please feel free to contact us!!
