high quality brand noelift 2ton 4 wheel electric forklift truck TK

FOB Price

US$ 10,000 - 100,000 / Unit

1 Unit(Min. Order)

Port SHANGHAI/NANJING
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	NOELIFT	Model Number	TK20-30
Type	Powered Pallet Truck	Power Souce	DC Motor
Rated Loading Capacity	1500kg	Max. Lifting Height	6000mm
Min. Lifting Height	3000mm	Fork Length	1070mm
Fork Width	120mm	Overall Dimensions	2348x1150x2005mm (LxWxT)
Certification	CE	After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

Seat on type opertaion, DC motor.
Durability: all electric connector with water-proof design;
Wide vision mast,

Options: AC Driving system,
Rated load capacity: 3T, lift height:3000- 6000mm, stable performance, comfortable operation, the advantages are as follows:

1. Initiative shocking proof system, to make sure the forklift more safe and stability;
2. Strenghen mast with high safety factor;
3. Durability: all electric connector with water-proof design;
4. The advanced safe system for mast pipeline, to aviod the out of control for mast when hydraulic system have fault, to ensure the good safe;
5. To use MOSFET controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery;

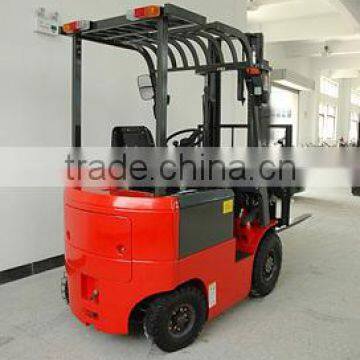

Product Picture

Product Parameter

Description	4-wheel electric forklift truck
Model	TK15-30	TK20-30	TK25-30	TK30-30
Load capacity Kg	1500	2000	2500	3000
Load center mm	500	500	500	500
Max. lifting height mm	3000	3000	3000	3000
Wheel type	Pneumatic
Fork size(LxWxT) mm	1070x100x35	1070x120x40	1070x120x40	1070x122x45
Overall length(without forks) mm	2015	2348	2353	2540
Overall width mm	1070	1150	1150	1225
Overall height mast closed mm	2130	2005	2005	2060
Overall height fork raised(with backrest) mm	4030	4020	4020	4200
Overhead guard height mm	2169	2170	2170	2180
Outside turning radius mm	1930	2165	2170	2320
Total weight( with battery) Kg	3000	3940	4055	4980

note: if any products meet your need, please feel free to tell me. and as an experienced manufacturer, we can also provide customized servce, if any need, welcome to contact us.
