North America blue color 3 points electric forklift truck

FOB Price

US$ 10,000 - 100,000 / Unit

1 Unit(Min. Order)

Port SHANGHAI/NANJING
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	NOELIFT	Model Number	TKA15
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	1500kg	Max. Lifting Height	4500mm
Min. Lifting Height	3000mm	Fork Length	920mm
Fork Width	100mm	Overall Dimensions	2370x1055x2065mm
Certification	CE,GOST, ISO9001	After-sales Service Provided	Overseas third-party support available

Product Description

1.5ton mini 3-wheel electric forklift truck TKA series

1. Rated load capacity: 1500 kg

2. maximum lift height: 4500mm
3. AC drive motor with strong applicability

4. suitable for small space operation and storey operation

ADVANTAGE:
1. Safety neutral device which does not allow starting when in a neutral position to enhance security of the car;
2. Curve Safe control to automatically slow down when turning;
3. Safety oil shut-off valve to ensure security of the personnel and cargo;
4. Forward cylinder security locks and variable wheelbase to ensure more security in forklift running;
5. High-strength overhead guard to ensure safety of the operating personnel.

Product Picture

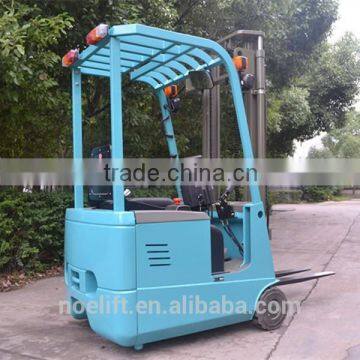

mini 3wheels electric forklift truck TKA series

Product Parameter

Description	3-wheel electric forklift truck
Model	TKA10-30	TKA15-30
Load capacity Kg	1000	1500
Load center mm	500	500
Max. lifting height mm	3000	3000
Wheel type	Polyurethane solid tire
Fork size(LxWxT) mm	920X100X35	920X100X35
Overall length(without forks) mm	1350	1450
Overall width mm	870	1100
Overall height mast closed mm	2070	2070
Overall height fork raised(without backrest) mm	3535	3535
Overhead guard height mm	1965	1965
Outside turning radius mm	1170	1272
Total weight( with battery) Kg	1950	2170
Battery V/Ah	24/360	24/480
Charger V/A	24/40	24/50
Driving motor Kw	2.8 AC	2.8 AC
Lifting motor Kw	3.5	3.5
