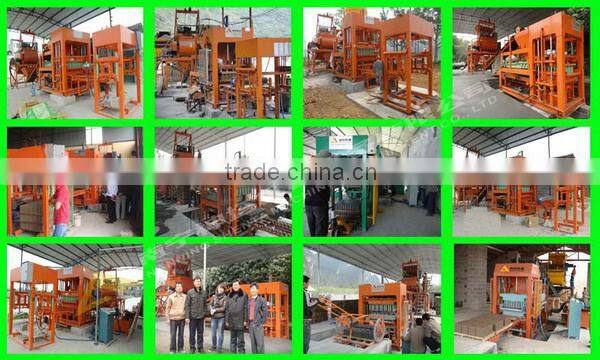

Morocco QTY10-15 Brick Block Making Machine China Fair

1. Our Advantages

→ We are brick and block making machine manufacturer with 40 years professional experience.

→ We can offer large scale, millde scale and small scale brick and block making machine.

→ We have more than 40,000 square meters production area with over 200 workers.

→ Welcome to visit Shenta factory.

1

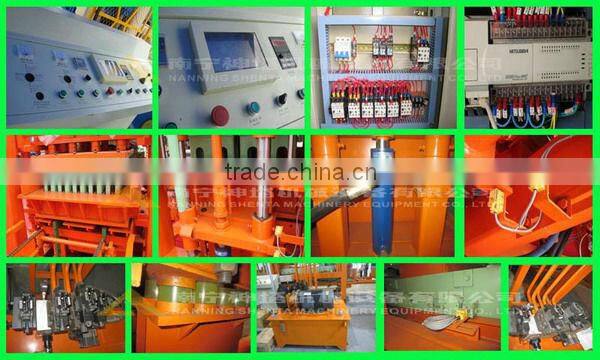

Adopt Japanese Mitsubishi PLC controller, HMI operates and brick automatically output, automatically reset, lack material and lack plank alarm, easy and humanized operation. The electric parts are provided by well-known company to ensure the safety and stable running.

2

The main machine utilized the molding method of pressure and high frequency vibration to make the more airtight and solid block

3

The hydraulic system adopts Taiwan or Japan high quality components.

4

High speed arch breaking device can consumedly shorten the material distributing time.

5

The machine equipped with the data setting device, the distributing time and vibration time is able to be set and revised according to different brick material.

6

Adopt the four poles guidance and super long-life wearable materials to ensure the high precision action of mould and press head.

7

With multifunction feature to produce both the load-bearing brick and non-load-bearing brick, according to change the mould to produce different wall bricks, as well as produce multi-hole bricks and road pavers bricks.

8

Machine frame adopt super strong profile steel to weld to provide the stability and reliability intervening the long working life

Outside Dimension (mm)

5200x2700x3100

Operation Cycle (s)

15~25

Main Machine Weight (Ton)

10

Vibration Frequency (rpm)

4300

Power Consumption (Kw)

50

Vibration Force (Kn)

120

Pallet Dimension (mm)

1100x950x25

Vibration Power (kW)

22

Operator quantity

5 people

Land required

6000m2

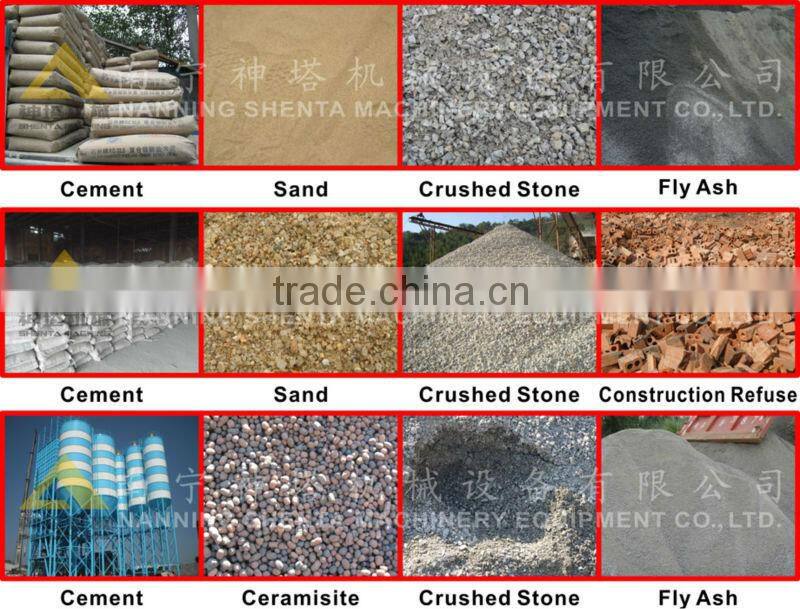

6. Raw Materials

Ⅰ.Cement—12%;

Ⅱ. Fly ash or refine stone powder or refine sand—38%;

Ⅲ. Crushed stone (diameter<15mm)—50%

Materials such as sand, crushed stone, cement, dust and fly coal ash, cinder, gravel, perlite, wet ash in power plant, dry ash, hybrid ash, boiler slag, spontaneous combustion coal gangue, mountain flour, haydite, mine tailings, scoria, steel slag, carbide slag, water-granulated slag, wind-granulared slag, dry slag, smelting slag, sulfuric acid residue, phosphate fertilizer slag, caustic sludge, laterite in aluminum manufacturers, electrolytic copper slag, stonework waste, potsherd, waste brick power, construction waste, etc(among which one or two kinds are enough)

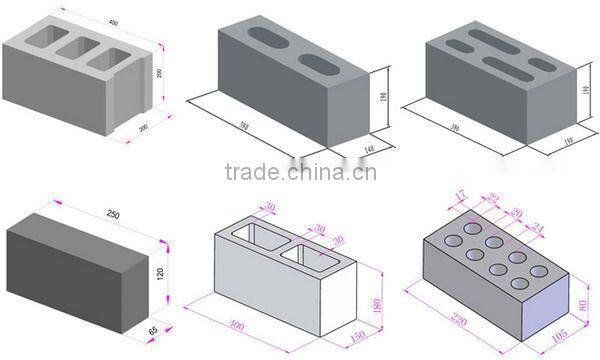

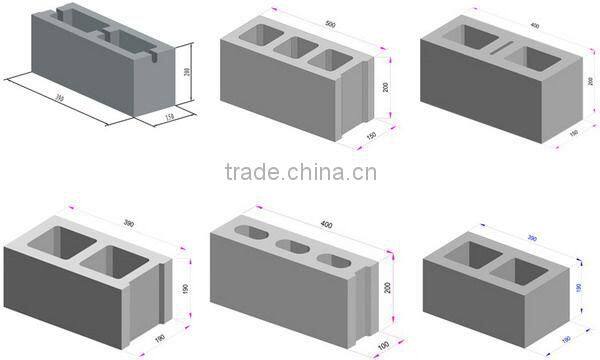

7. Produce Brick and Block

Shenta machine can produce: various types of concrete brick and block, cement brick and block, standard bricks, perforated bricks and paving bricks, solid/hollow/cellular masonry brick and block, paving stones with or without face mix, garden and landscaping products. slab, edger, kerbstone, grass blocks, solpe blocks, interlocking blocks. These products are of good quality, high compression strength and accurate dimension. Besides, more kinds can be produced such as paving bricks, color grassland bricks and curb bricks if the second raw materials feeding system is added to the line. Widely used in building, road paving, squares, gardens, landscaping. city constructions etc.

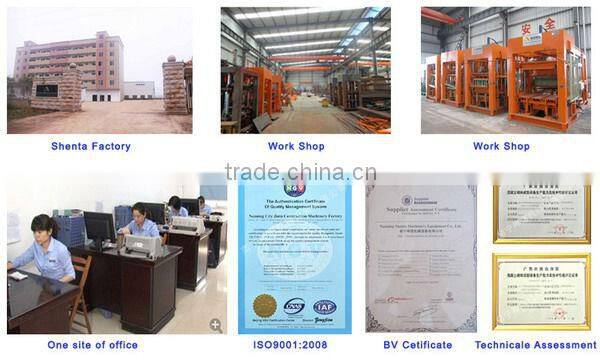

10. Shenta Profile

Shenta Machinery Equipment Co.,Ltd. (short for Shenta machine), we are specialized in concrete brick and block making machine in China, as the most earliest and professional in cement brick and block making machine since1973, we can offer you the brick & block making machine and production line with reliable quality, professional technology, and sincere service. We have exported to Southeast asia, Africa, and Ocenaia, etc.
